GW Instek launches the APS-7000E Series, the economy version of the APS-7000 Series programmable AC power source. With a height of 2U, the maximum rated output for APS-7050E is 500VA, 310Vrms, 4.2Arms and APS-7100E is 1000VA, 310Vrms, 8.4Arms. The output frequency range of the series is 45~500Hz. The series is ideal for the test and development of DC power supply devices, consumer electronics, automotive electronics and electronic components.

GWInstek introduces APS-7000 series programmable AC power sources, which consists of 500VA of APS-7050, 1000VA of APS-7100, 2000VA of APS-7200 and 3000VA of APS-7300. APS-7000 series features power characteristics from its linear structure design including low noise, low THD, and highly stabilized power output that are ideal for the product development and verification of input power with low noise requirement or stereo, video and audio device applications, etc. The maximum rated voltage is 0~ 310Vrms, 25.2Arms, 100.8A peak current and the output frequency range is 45~500.0Hz. Users can conveniently augment the output voltage from 0Vrms to 600Vrms and output frequency from 45Hz to 999.9Hz by purchasing options without sending equipment back to GW Instek.

The GPD-X303S Series contains the superior technology and high quality which GW Instek had established through its long history of power supply design and manufacturing. The GPD-X303 Series offers digital panel control, large display, bright LED indicators, high output resolution, 4 sets of setup memory, USB remote control and smart cooling fan control. Additionally , the GPD-X303S Series provides easy operation , a wide selection of panel setting and operation. All these features make the GPD-X303 Series the most promising new comer in the power supply market.

With the maximum output power of 217W, the GPP-Series, the multi-channel programmable DC power supply, includes four models: GPP-1326 (0~32V/0~6A) for single-channel output and GPP-2323 for dual-channel output (CH1:0~32V/0~3A, CH2: 0~32V/0~3A), GPP-3323 for three-channel output (CH1: 0~32V/0~3A, CH2:0~32V/0~3A, CH3: 1.8V, 2.5V, 3.3V, 5.0V/5A) and GPP-4323 for four-channel output (CH1:0~32V/0~3A, CH2:0~32V/0~3A, CH3:0~5V/0 ~1A, CH4: 0~15V/0~1A). This series not only provides high program resolution (1mV/0.1mA) and read back resolution (0.1mV/0.1mA), but also features optimal low-ripple noise characteristics ≦350uVrms/≦2mArms and output transient recovery capability≦50S. Independent output on-off switch is provided for each channel.

GPP-3060/6030/3650 triple-channel programmable DC power supplies are extension models of the GPP-X323 series. The maximum output power of these three models is 385W. GPP-3060 supports CH1/CH2: 0 ~ 30V / 0 ~ 6A output; GPP-6030 supports CH1/CH2: 0 ~ 60V / 0 ~ 3A output; GPP-3650 supports CH1/CH2: 0 ~ 36V / 0 ~5A output; CH3 of three models supports 1.8V, 2.5V, 3.3V, 5.0V/5A.

The GPE-3060/6030 launched by GW Instek are high-resolution linear DC power supplies. Their primary aim is to replace the existing GPC-3060D/ 6030D models. The GPE-3060/6030 deliver 385 watts of output power and feature three independent isolated output channels. The GPE-3060 offers CH1/CH2 outputs of 0 to 30V and 0 to 6A, while the GPE-6030 supports CH1/CH2 outputs of 0 to 60V and 0 to 3A. Both models feature CH3 outputs of 5.0V at 5A.

GPP programmable DC power supply series incorporates two new 360W models, namely the 36 V/10 A GPP-3610H and the 72 V/5 A GPP-7250. GPP-3610H provides high programming resolution (1 mV/0.2 mA) and readback resolution (0.1 mV/0.2 mA); GPP-7250 provides high programming resolution (2mV/0.2mA) and readback resolution (0.1 mV/0.1 mA), and the best low ripple noise characteristics ≦1 mVrms ( 5 Hz to 1 MHz) / ≦2 mArms and  output transient recovery capability≦100 us.

The GPE-X323 series features output power from 192 to 217 watts, three independent isolated output channels (GPE-X323), high resolution, low noise, high reliability, key lock function, and compact size. The GPE-X323 series has firmly established another new paradigm for GW Instek in manufacturing economy linear D.C. power supplies.

The GPS-Series is 2-4 channel, 180 to 200W output, linear DC power supplies. Overload and reverse polarity protection, and an output on/off switch keep the GPS-Series and their load safe from unexpected conditions. A High regulation (0.01%+3mV) and low ripple/noise (< 1mVrms, 5Hz~1MHz) are maintained for channel 1 and 2 in constant voltage mode. Automated cooling fan speed control minimizes fan noise according to load conditions, ensuring quiet operation. The GPS-Series is an ideal solution for lightweight, inexpensive bench-top or portable applications requiring high regulation and multiple outputs.

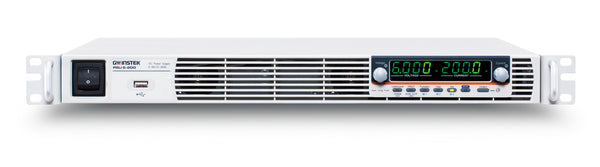

GW Instek PSU-Series, a DC power supply with high power density design, is 1U in height and compatible with 19” Rack Mount Size. The series is suitable for test system installation or system integration by flexibly selecting models for the integration into the existing test system. The PSU- Series, featuring superior voltage and current control functions, comprises fifteen models with output voltage/current ranging from 6V/200A to 600V/2.6A. The Series is suitable for different test conditions and DUTs, including electronic components testing, micro resistors, relays, shunt resistors, 12V/24V/48V battery simulation, and automotive electronic device testing.

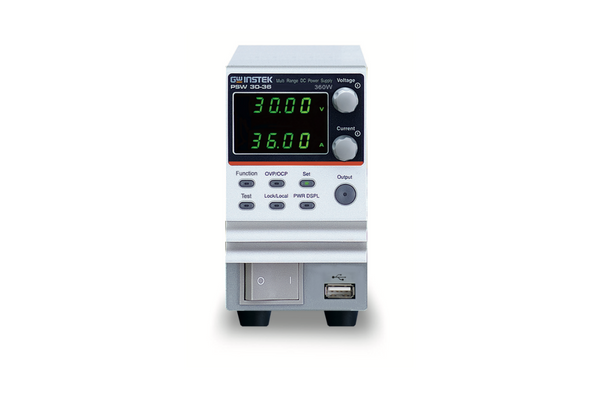

The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30 V, 40 V, 80 V, 160 V, 250 V, and 800 V rated voltages and 360 W, 720 W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.

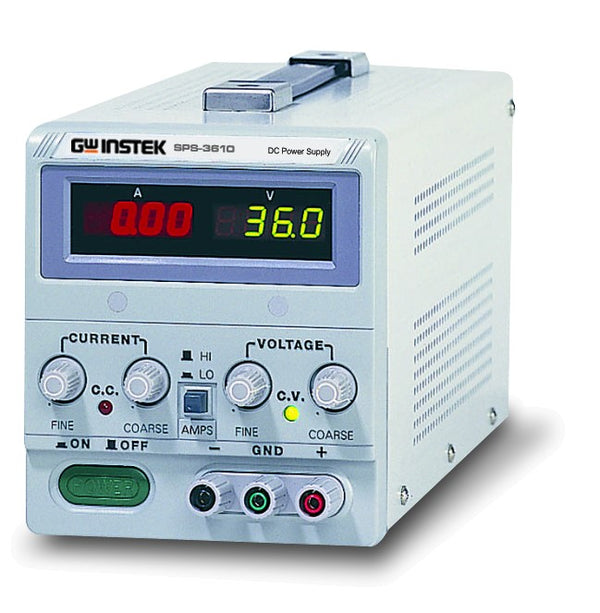

The SPS-Series is single output, 360W, switching DC power supplies. OVP protects the SPS-Series and their loads from unexpected conditions. High regulation is maintained at 0.01%. Remote sensing adds an extra level of precision by compensating cable losses between loads. Turning the output On/Off from external device is available through remote control terminals. The SPS-Series is an ideal solution for power-efficient bench-top or portable applications requiring high regulation.

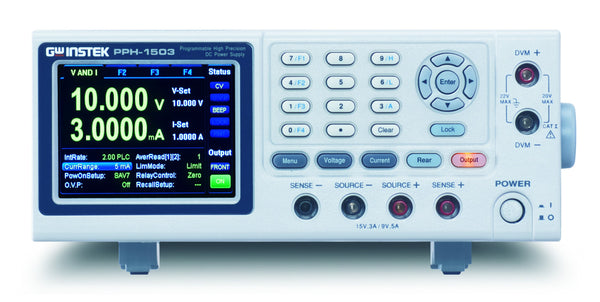

PPH-1503 is a high-speed and high-precision DC Power Supply with dual range of 15V/3A or 9V/5A. PPH-1503 is exclusively designed to meet low power consumption requirements and users’ great demands of accuracy, speed and resolution of both voltage and current. Circuits are designed with swift response capability to provide a stable voltage output while experiencing load changes. For example, when switching cellular phone from standby to talk mode, the current consumption will be dramatically changed within milliseconds. When load current exceeded current limit, two operational modes: Limit and Trip can be selected. Under Limit mode, PPH-1503 will automatically switch to constant current (CC) mode. Under Trip mode, voltage output will automatically turn off.

The GPR-M Series is single output, 180W, linear DC power supplies, featuring all the same functions as the GPR-H Series but for lower power demands. Like the GPR-H Series, the GPR-M Series is suitable for high-end precision bench top applications. Low load and line regulation for both constant voltage and constant current mode ensure reliable, predictable output. Overload and reverse polarity protection as well as internal selection for dynamic or constant load are standard.

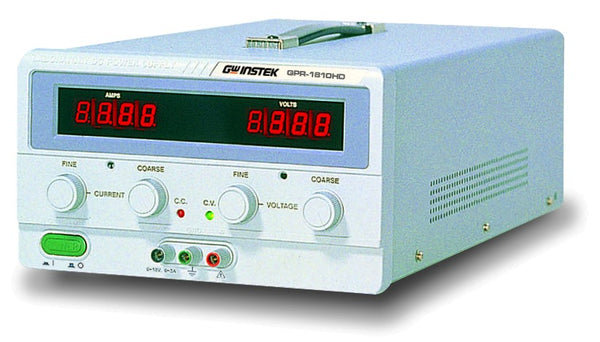

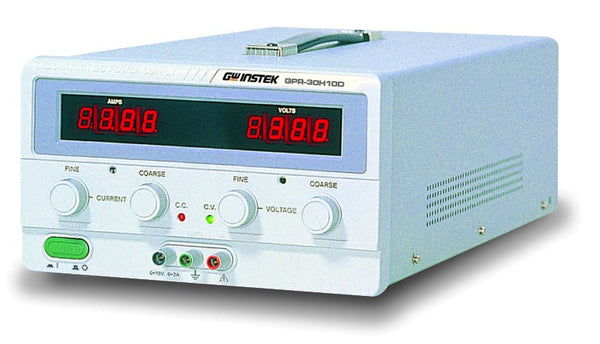

The GPR-H Series is single output, 240 to 375W, linear DC power supplies. Ranging from 8 to 300V, the GPR-H Series comes in a number of different configurations to suit a variety of different needs. To protect loads, the GPR-H Series features robust protection measures with overload and reverse polarity protection. Continuous or dynamic output is supported for pulsed current applications such as power amplifier testing. The high regulation and low ripple/noise make the GPR-H Series suitable for high-end bench-top applications requiring precision.
