PSU-Series Programmable Switching D.C. Power Supply

RM10,916.00

Model: PSU 6-200

PSU 6-200
PSU 40-38
Ask a Question
PDF Icon

View
Datasheet

Key Specifications

  • Voltage Rating : 6V/8V/12.5V/15V/20V/30V/40V/50V/60V/80V/100V/150V/300V/400V/600V
  • Output Power Rating: 1200W~1560W
  • C.V / C.C Priority
  • Adjustable voltage/current rise and fall time
  • Series/ Parallel Connection: Max. 2 Units(Models Under 300V)/ 4 Units of The Same Model
  • High Efficiency and High Power Density
  • 1U Height and 19”Rack Mount Size
  • Standard Interface: USB, LAN, RS-232, RS-485, Analog Control

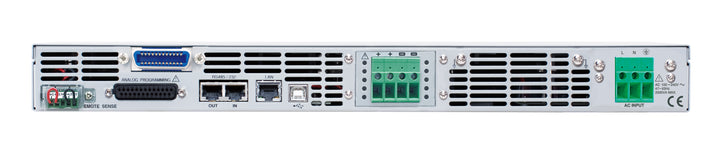

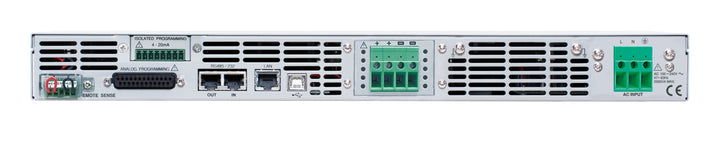

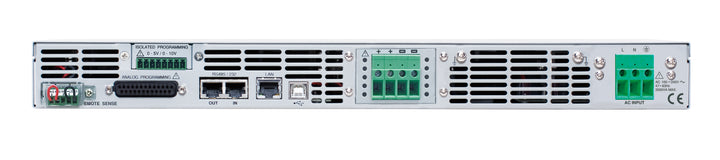

  • Optional Interface: GPIB, Isolated Analog Interface(Voltage Control/ Current Control)

Description

GW Instek PSU-Series, a DC power supply with high power density design, is 1U in height and compatible with 19” Rack Mount Size. The series is suitable for test system installation or system integration by flexibly selecting models for the integration into the existing test system. The PSU- Series, featuring superior voltage and current control functions, comprises fifteen models with output voltage/current ranging from 6V/200A to 600V/2.6A. The Series is suitable for different test conditions and DUTs, including electronic components testing, micro resistors, relays, shunt resistors, 12V/24V/48V battery simulation, and automotive electronic device testing.
