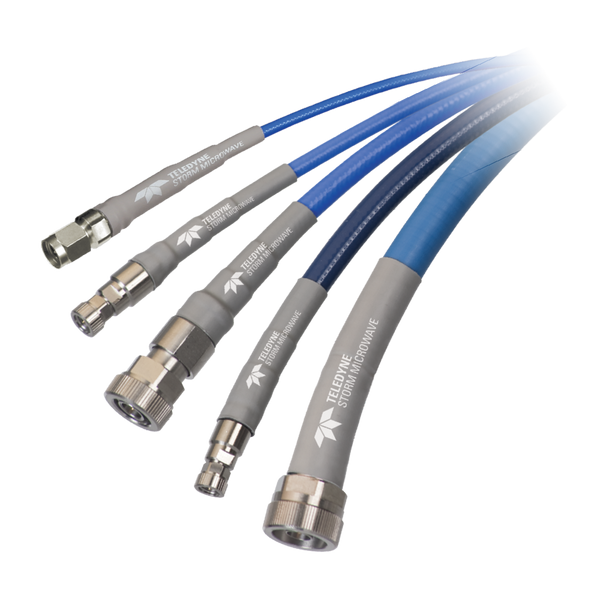

dB Miser™
RM0.00
Cost-Effective, High-Performance Solutions for Low Loss Challenges
Consider dB Miser™ ultra low loss cable assemblies. High performance materials, careful attention to design detail, and stringent process control yields:
Ultra low insertion loss over the specified frequency range
Excellent amplitude stability with flexure
Stable performance over operating temperature range
Increased shielding effectiveness
Greater connector retention
dB Miser™ 130dB Miser™ 160dB Miser™ 190dB Miser™ 210dB Miser™ 300

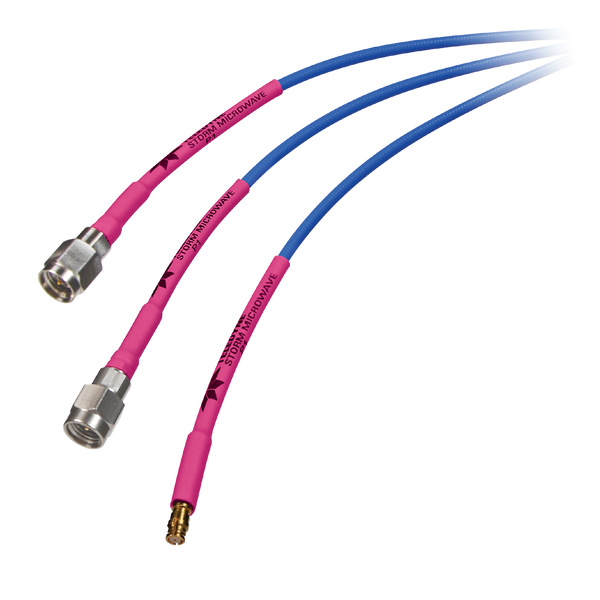

FlatPhase™ 100 Series
RM0.00
Best in class phase stability vs. temperature makes FlatPhase™ the preferred option when you need flat phase.
Our proprietary foamed fluoropolymer dielectric avoids the typical PTFE knee to deliver a flatter phase response.
You can expect:
An extremely effective lab cable designed for fewer calibrations
A cable that withstands large temperature swings
Another high quality Storm cable with exceptional performance
Any application that has an environment with extreme temperature fluctuations or stress inducing elements will effectively benefit from the robust properties of FlatPhase™.
Uses in aircrafts and ground vehicles see immediate benefits after switching from PTFE dielectric cables.
FlatPhase™ 100
FlexCore®
RM0.00
Systems and Test & Measurement applications will benefit from the FlexCore™ Advantage when requirements call for:
Ease of handling
Mechanical reliability
Repeatability
Excellent connector retention
And, with its 7-strand center conductor design, FlexCore™ minimizes the increased attenuation common to 19-strand designs.
FlexCore™ accommodates the need for installation flexibility, flex during use and handling, and maintaining calibration during sensitive RF measurements.
With validated mechanical and electrical stability at more than 100K flexures, the FlexCore™ 210 Series is the cable that engineers turn to when extended product lifecycle and RF performance stability is a prerequisite.

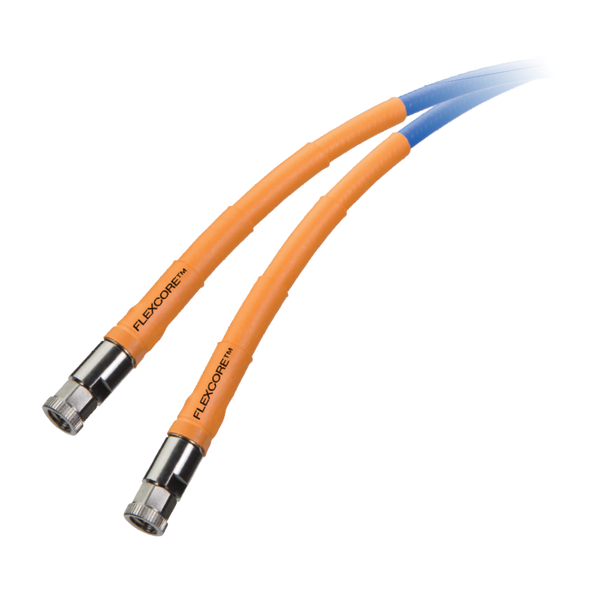

FlexCore™ 210
FlexFit®
RM0.00
Does your application require:
Low resistance to flexure?
Continual movement?
Low weight?
Does it have tight space constraints?
Whether you're facing one or more of these issues, FlexFit™ assemblies can provide your solution.
The FlexFit™ cable has a stranded center conductor that offers ultra flexibility (>500,000 flexures) with electrical and physical stability.
And, its small size (0.052"/1.32 mm OD) satisfies weight and space constraints that can impact ease of installation.

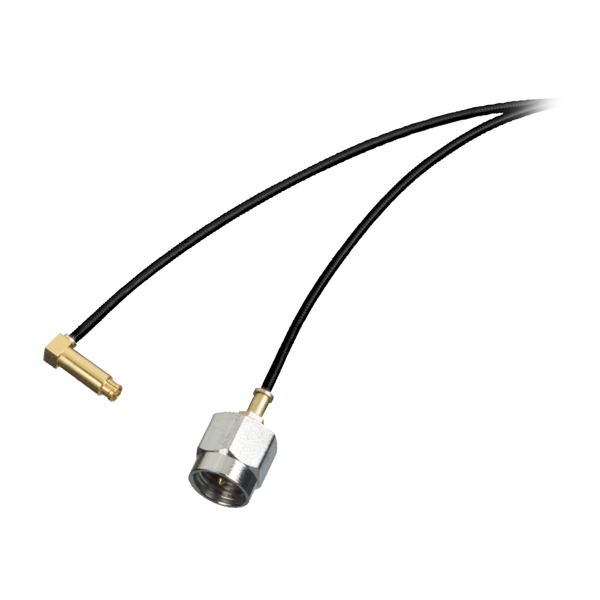

FlexFit™
Phase Master®
RM0.00
Superior phase stability vs. temperature makes this cable the ideal choice for phase-sensitive applications— particularly those with wide operating temperature ranges.
Phase Master's enhanced phase stability— a result of a proprietary combination of high performance, tape wrapped PTFE dielectric and helically wrapped SPC shield—offers:
Improved system performance
Less frequent calibration
More precise measurements
From environmental stress screening to electronically scanned radar systems, count on Phase Master® assemblies to provide unparalleled value and performance.

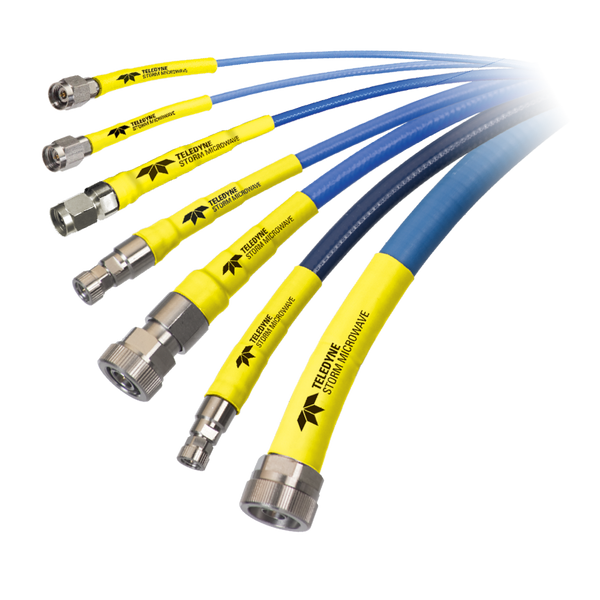

PhaseMaster® 096PhaseMaster® 110PhaseMaster® 130PhaseMaster® 160PhaseMaster® 190PhaseMaster® 210PhaseMaster® 300
PhaseMaster® Enhanced
RM0.00
Does your application require cable assemblies offering some combination of phase stability and low loss, significant shielding effectiveness and increased durability?
Consider Phase Master® 190E as your design-in option.
Compared to similar phase stable cables, the Phase Master® 190E’s enhanced, multilayer shield construction yields:
A high level of phase stability vs. temperature
Reduced insertion loss & increased amplitude stability
Increased shielding effectiveness (120 dB @ 1 GHz, min)
Increased mechanical durability, especially torsion resistance
Greater connector retention (>40 lbs straight pull with SMA connectors)

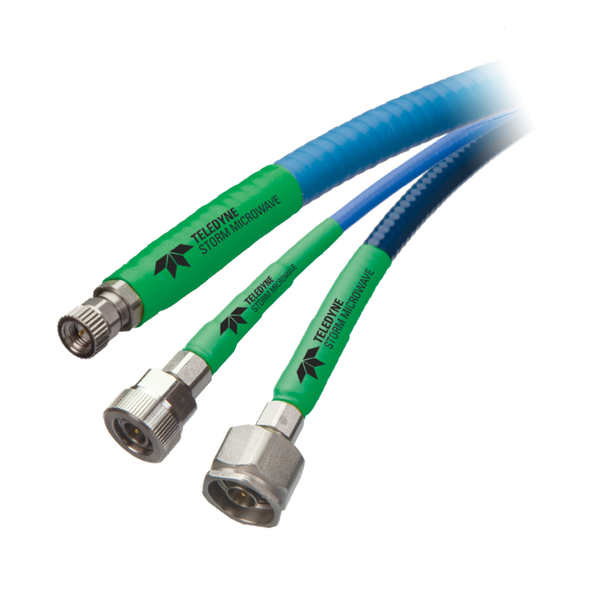

Phase Master® 190E

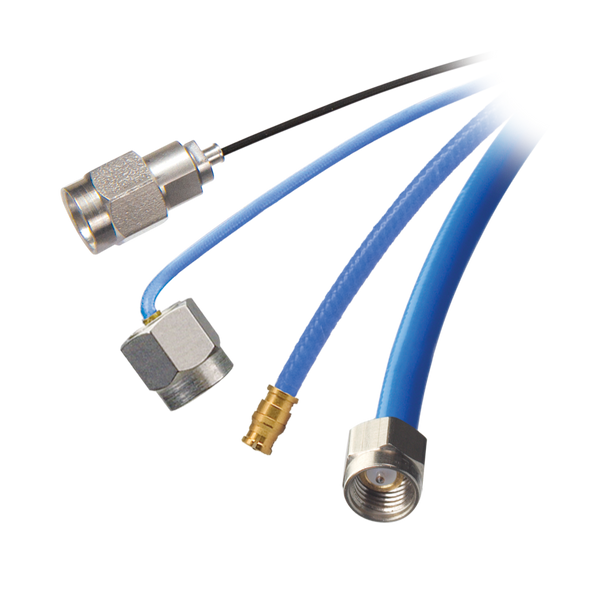

StormFlex® 034, 047, 086, & 141
RM0.00
StormFlex® 034
Miniature Assemblies
Ruggedness and durability combined with ultra-small 0.038" diameter, very low weight, and extreme flexibility make Storm Flex® 034 cable assemblies the perfect fit for applications including gimbal, digital test and high density.
StormFlex® 047 & 086
Miniature Assemblies
With 0.055" and 0.096" diameters, durable construction, and low profiles in SMA SP configuration, Storm Flex® miniature cables offer superior electrical performance in a trouble-free, compact assembly.
StormFlex® 141
Combining flexibility and durability with a larger 0.160" diameter, Storm Flex® 141 maintains excellent electrical characteristics through multiple flexures.
Storm Flex® 034Storm Flex® 047Storm Flex® 086Storm Flex® 141
StormFlex® 047EW
RM0.00
An SF047EW assembly offers test engineers, application designers, manufacturers of mmWave applications the proven durability and robustness of Storm Flex® 047 cable, optimized for coaxial connectivity at frequencies up to 110 GHz.
SF047EW cable can withstand handling and flexing and while maintaining the original Insertion Loss and VSWR performance at frequencies previously addressed by waveguides.

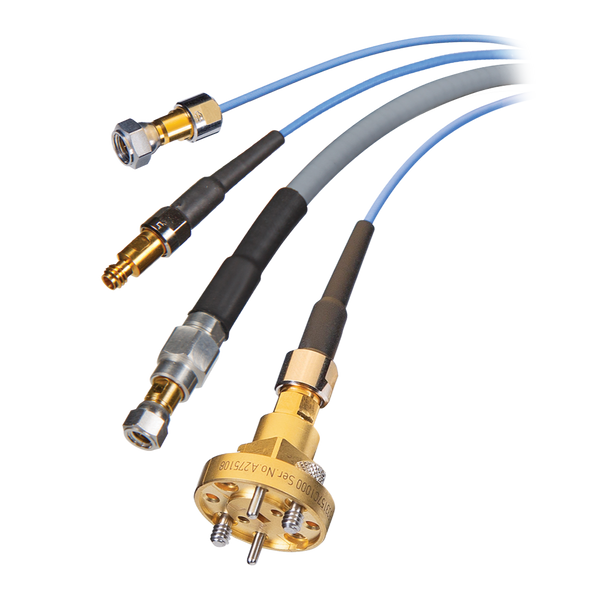

StormFlex® 047EW
True Blue®
RM0.00
The Question: What does Teledyne Storm Microwave’s True Blue® line of cable assemblies provide?
The Answer: An unmatched combination of low loss, durability, and value.
For more than 30 years, our True Blue® assemblies have been the winning choice of design, test, and production engineers for:
Military and aerospace design-in applications
General purpose test applications
Production testing
With a design based entirely on high-performance materials, the True Blue® line covers frequencies from DC to 50 GHz.
Assemblies are available in both custom configurations and a variety of standard lengths and connector combinations.
The basic True Blue® cable is designed to be durable. However, for applications requiring added durability, assemblies are also available ruggedized, armored, and soft armored.

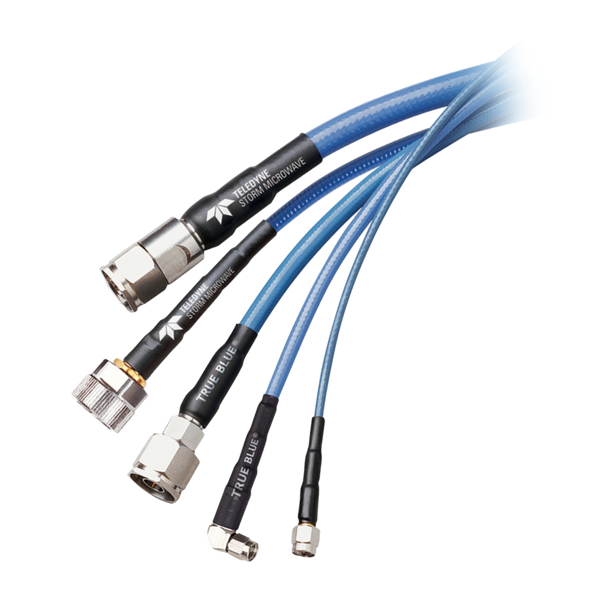

True Blue® 125True Blue® 205True Blue® 290True Blue® 420
Maximizer™
RM0.00
Extend your system’s performance with Storm’s MAXIMIZER™ line of cable products.
For the most demanding applications, phase stable low loss Maximizer™ Gold products offer the highest performance in terms of low loss, high power handling, and increased electrical length stability over temperature.
Low loss RG replacement Maximizer™ Silver products offer significantly lower loss at higher frequencies than standard, solid PTFE microwave semi-rigid cables. And since they fit readily available connectors, they provide a very cost-effective solution to many design challenges.
Maximizer™ Cables:
Custom-built assemblies, coils, or straight lengths
Copper, tin, or silver-plated finish; custom finishes on request
Maximizer™ Gold 086Maximizer™ Gold 116Maximizer™ Gold 141Maximizer™ Gold 250Maximizer™ Silver 086Maximizer™ Silver 141
MIL-DTL-17 Standard Cable
RM0.00
Teledyne Storm Microwave takes pride in offering a comprehensive range of MIL-DTL-17-qualified replacement cables in standard sizes. Our most popular selections include:
.047” OD (M17/151)
.086” OD (M17/133)
.141” OD (M17/130
In addition, we provide other MIL-DTL-17 standard size cables upon request, ensuring we meet all your specific needs.
Our in-house designed, cost-effective connectors cater to numerous standard interfaces such as SMA, TNC, and SMP. We seamlessly procure and terminate existing designs that specify particular interfaces and manufacturers according to your drawings.
Our services go beyond providing cables; we specialize in custom routing services and optimization of existing routing. Utilizing state-of-the-art custom bending machines and leveraging over 40 years of industry experience, we guarantee the tightest angle and length tolerances, ensuring that performance specifications are consistently met.
.047” OD (M17/151).086” OD (M17/133).141” OD (M17/130)

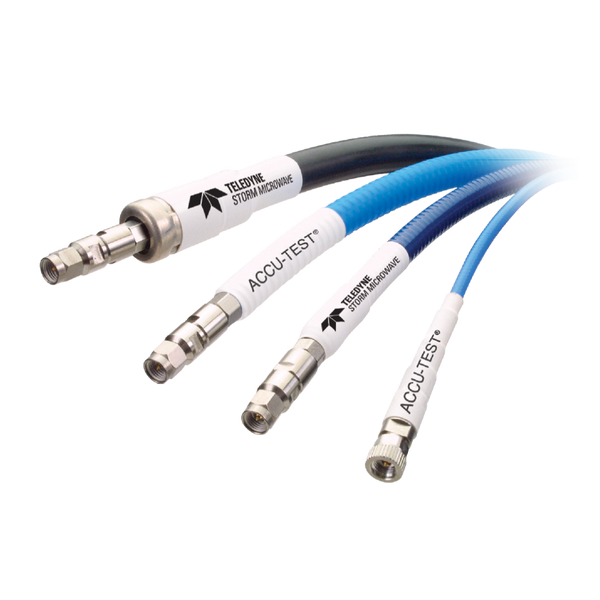

Accu-Test® 150 & 200
RM0.00
If you’re responsible for testing RF and microwave electronics systems and hardware, you should know:
For over 35 years, Teledyne Storm Microwave has been developing and delivering standard and custom Test & Measurement solutions to meet challenging needs like yours. Take our Accu-Test® cable assemblies.
The Accu-Test® line of assemblies was designed to provide exceptional performance in applications requiring both durability and phase stability vs. flexure. The result? Calibration accuracy is maintained, with worry-free handling.
Accu-Test® 150Accu-Test® 200
DuraTest™
RM0.00
When you need a general purpose test assembly that can be counted on for the long haul and won’t bust the budget, you need a DuraTest™ assembly.
DuraTest™ combines:
The proven toughness of Teledyne Storm cable
Captivated stainless steel connectors
Proprietary Hard-To-Hurt™ strain relief technology
Resulting in an extra durable, precision test assembly that:
Has an average flex life of 25,000 flexures
Is guaranteed for one year

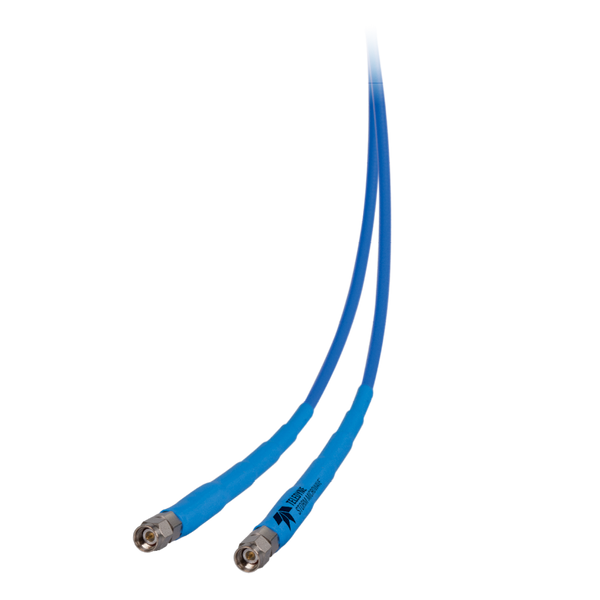

DuraTest™

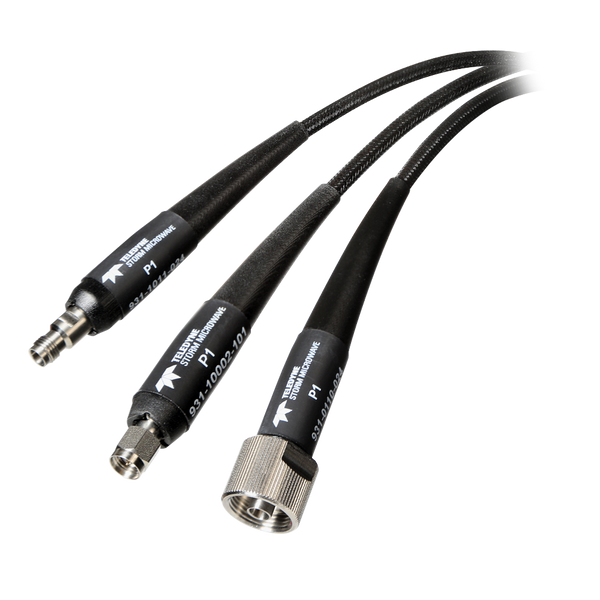

Storm-Test®
RM0.00
Engineered to provide precise measurements with stable electrical performance
Excellent loss, VSWR, & phase/amplitude stability with flexure.
Internally ruggedized cable construction delivers longer life, repetitive mating and prevents crushing, bending & twisting
Accurate & repeatable measurements
Performance tested prior to shipment
Storm-Test™ 50 GHzStorm-Test™ 40 GHzStorm-Test™ 26.5 GHz

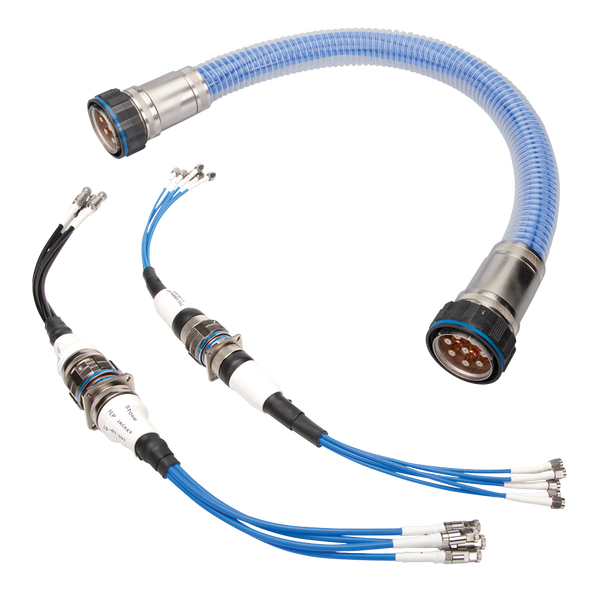

Circular Connector Harness Solutions
RM0.00
Solutions comprise harnesses ranging from basic bundled RF cable interconnects to sophisticated “fan-out” designs calling for stringent RF matching, complex housings, and multi-channel connectivity compliance. Plug-to-Plug with Armor Armored harness assemblies are typically used to connect boxes together when maximum protection of the cable is required. Various types of armor are available, from the extremely crush- and environmentally resistant rubber coated metal armors to the light weight corrugated PEEK plastic. The most popular finishes for the connectors and backshells are nickel or cadmium. Plug-to-Plug with Expando Jacket Typically used to connect boxes or test equipment, these harness assemblies have a textile “Expando” braid over the cable assemblies to keep them contained and provide abrasion resistance. In some cases the routing convenience alone is reason to use this type of an assembly, rather than struggle with multiple individual cables. This is a lower cost option than an armored assembly, and a...
Plug-to-Plug with ArmorPlug-to-Plug with Expando JacketPanel Mount with Fan-Out
Mini-MultiMate® Board-to-Device Harness Solutions
RM0.00
The Mini-MultiMate® is a compact, rugged, splash-resistant interconnect system that allows multiple high frequency connections (up to 50 GHz) with a single connector.
As an interconnect between a panel or PCB, the Mini-MultiMate’s compact size and utilization of Storm Flex® 047 & 086 cables makes it the perfect fit for high density layouts. Built to be durable, Storm Flex® 047 & 086 cables have the flexibility to handle tight bends and offer superior and consistent electrical performance with flexure.
The Mini-MultiMate® also accepts 047 & 086 semi-rigid cables. Ease-of-use features include port identification on the connector block and the ability to replace individual channel assemblies.

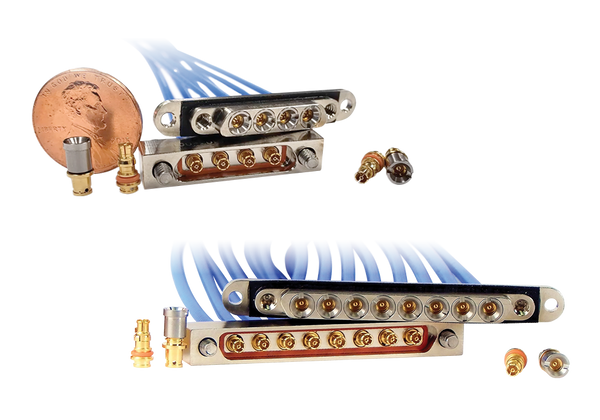

Mini-MultiMate® Using 047 CableMini-MultiMate® Using 086 CablePCB Mount Receptacle

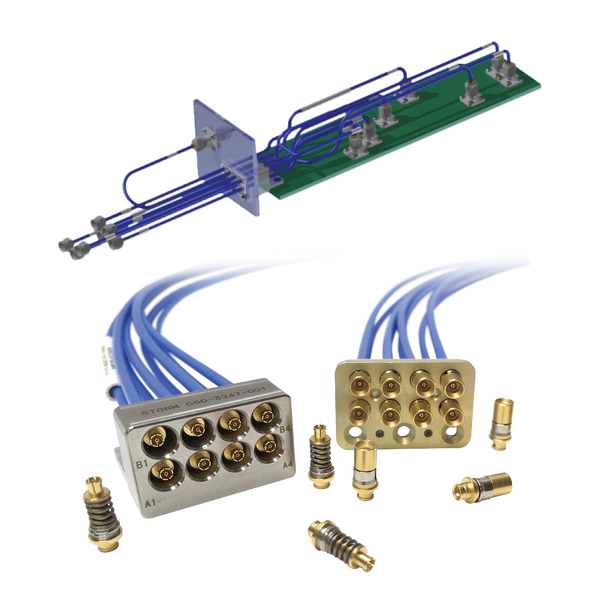

VITA 67 Rectangular Harness Solutions
RM0.00
VITA 67.1 & .2 VITA 67 components are connector blocks that utilize SMPM & OSMM RF interfaces and cables to make the electrical connection between circuit boards. Designed to accommodate 0.086” or 0.047" diameter cables, the rugged VITA 67 blocks are perfectly complemented by their pairing with Teledyne Storm Microwave’s Storm Flex® 086 and 047 cables. These Storm Flex® cables have the flexibility to handle tight bends, and are known for their durability and superior electrical performance. The VITA 67–Storm Flex® combination is ideally suited for not only commercial applications, but also the often harsh requirements of military and aerospace applications. VITA 67.3 VITA 67.3 Nano RF & SMPM assemblies are a part of VPX systems and is the latest spec revision that allows for more customization with RF connectors. The embedded computing architecture allows for fixed plug-in module contacts mating to a spring loaded backplane. The VITA standard ensures interoperability across all vendors with high electrical...
VITA 67.1 & 67.2VITA 67.3
PCB Connectors
RM0.00
Get On Board
With SMP and SMPM PCB connectors, Teledyne Storm Microwave is able to pair their superior cable assemblies into a full path solution. This high-performance path is an ideal match where precision and reliability is needed. A growing number of applications in Military systems, commercial test equipment, 5G devices, and others depend on smaller PCB components to make their new products work.
While the industry trend is moving towards higher density and higher frequency, excellent electrical performance is still important to maintain.
TSM is able to offer the following advantages:
Electrically matched footprint to ensure the PCB transition to connector is optimized
Industry leading support to make sure the soldering process is ideal
Industry leading technical expertise to ensure a successful connector deployment
Evaluation data to support electrical performance
Sample PCBs to test each connector
Test & evaluation boards for connector characterization available upon request

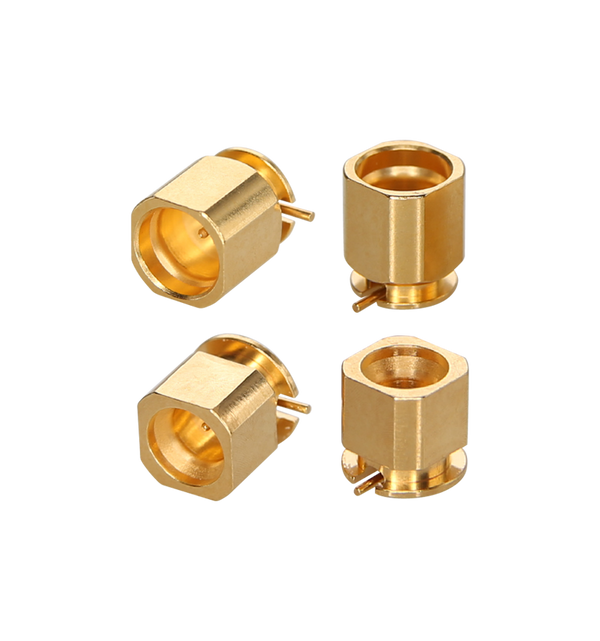

SMP Mating TypeSMPM Mating Type
