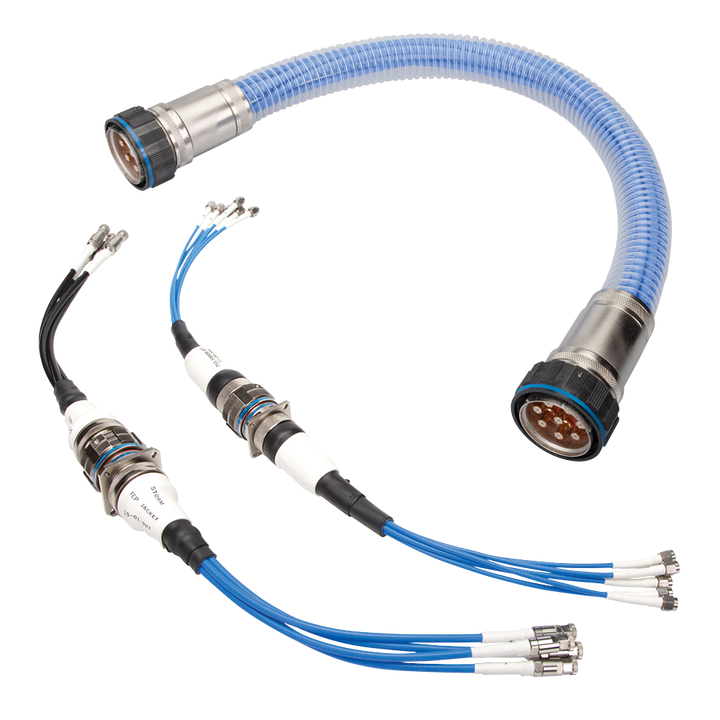

Circular Connector Harness Solutions

Cable Type: Plug-to-Plug with Armor

Plug-to-Plug with Armor
Plug-to-Plug with Expando Jacket
Panel Mount with Fan-Out
PDF Icon

View
Datasheet

Key Specifications

Please refer to datasheet for detailed specifications.

Description

Solutions comprise harnesses ranging from basic bundled RF cable interconnects to sophisticated “fan-out” designs calling for stringent RF matching, complex housings, and multi-channel connectivity compliance.

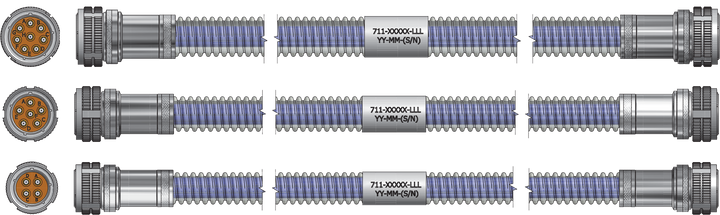

Plug-to-Plug with Armor

Armored harness assemblies are typically used to connect boxes together when maximum protection of the cable is required. Various types of armor are available, from the extremely crush- and environmentally resistant rubber coated metal armors to the light weight corrugated PEEK plastic. The most popular finishes for the connectors and backshells are nickel or cadmium.

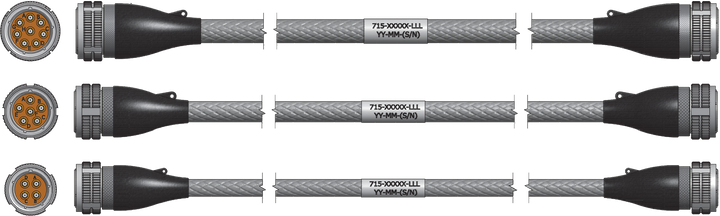

Plug-to-Plug with Expando Jacket

Typically used to connect boxes or test equipment, these harness assemblies have a textile “Expando” braid over the cable assemblies to keep them contained and provide abrasion resistance. In some cases the routing convenience alone is reason to use this type of an assembly, rather than struggle with multiple individual cables. This is a lower cost option than an armored assembly, and a good choice if the operating environment is not harsh. The most popular finishes for the connectors and backshells are nickel or cadmium.

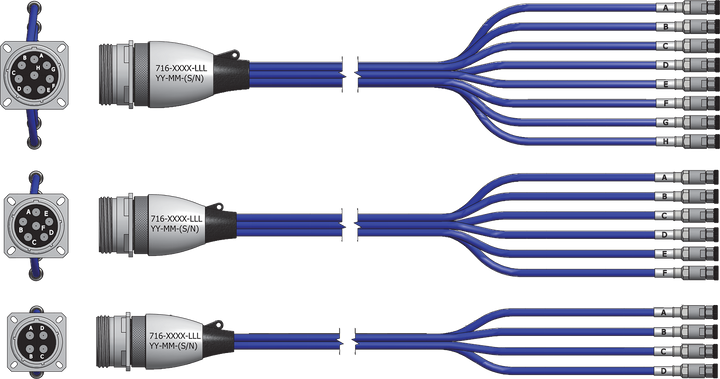

Panel Mount with Fan Out

This harness design most commonly resides on the box or bulkhead and connects to a board or other device inside the box with discrete connections. Virtually any style connector can be placed at the fan out end; SMA, TNC, GPO, etc. It is common for the panel mount assembly to be a short run in a smaller, more flexible, higher loss cable, while the plug to plug harness used in conjunction with this has a larger diameter, lower loss cable.
