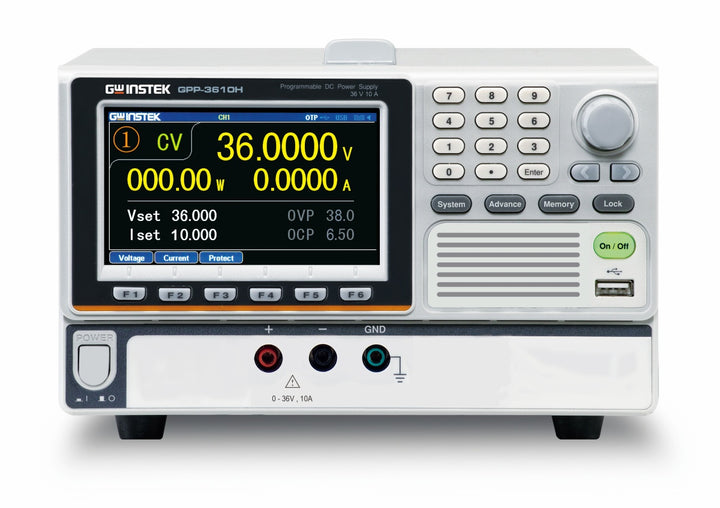

GPP-3610H/7250 Single-Channel Programmable DC Power Supply

RM5,533.00

Model: GPP-3610H (LAN)

GPP-3610H (LAN)
Ask a Question
PDF Icon

View
Datasheet

Key Specifications

  • 4.3” TFT LCD Display
  • Programming resolution: 1 mV/ 0.2 mA (GPP-3610H); 2 mV/0.2 mA (GPP-7250)
  • Readback resolution: 0.1 mV/ 0.1 mA
  • Low ripple noise: ≦ 1 mVrms / ≦2 mArms
  • Transient response time: ≦100 μs
  • Load function (CC, CV, CR mode)
  • Utilizes hardware to realize over voltage protection / over current protection / over temperature protection
  • Delay function/output monitoring function /output recorder function
  • Supports setting value, measurement value and output waveform display
  • Sequential output function and 8 built-in template waveforms
  • The output recorder function records the output voltage & current parameters with a minimum recording interval of 1 second
  • Sequence/delay/recorder/panel setting conditions respectively provide 10 sets of internal storage memory
  • Intelligent temperature-controlled fan effectively reduces noise

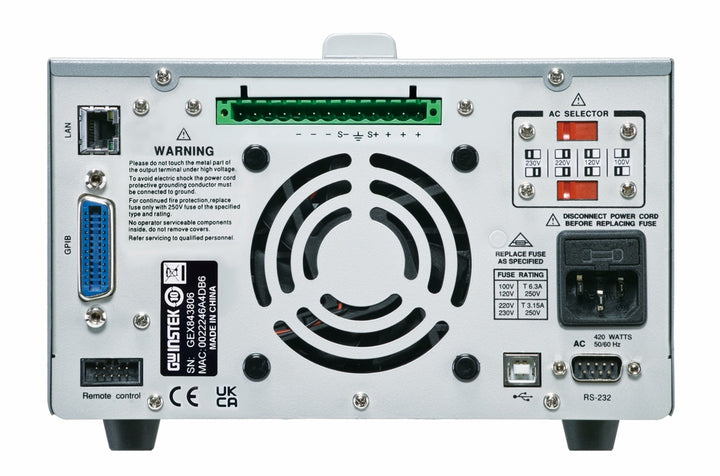

  • Standard interface: LAN, RS-232, USB, Ext I/O
  • Optional interface (manufacturer installed only): GPIB

Description

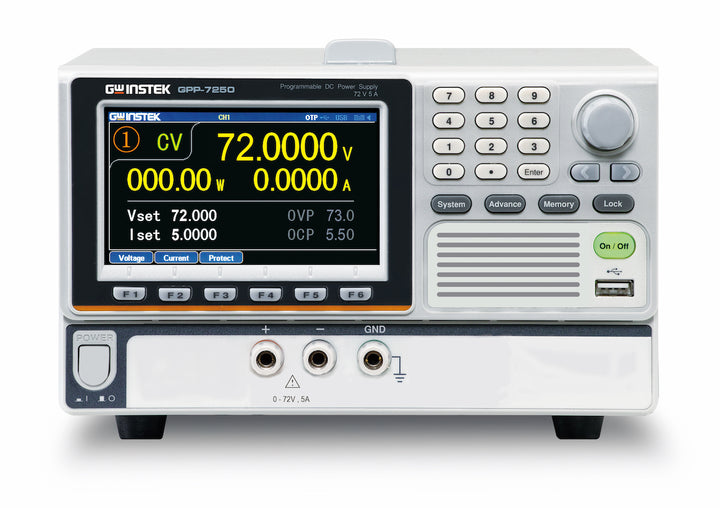

GPP programmable DC power supply series incorporates two new 360W models, namely the 36 V/10 A GPP-3610H and the 72 V/5 A GPP-7250. GPP-3610H provides high programming resolution (1 mV/0.2 mA) and readback resolution (0.1 mV/0.2 mA); GPP-7250 provides high programming resolution (2mV/0.2mA) and readback resolution (0.1 mV/0.1 mA), and the best low ripple noise characteristics ≦1 mVrms ( 5 Hz to 1 MHz) / ≦2 mArms and  output transient recovery capability≦100 us.
