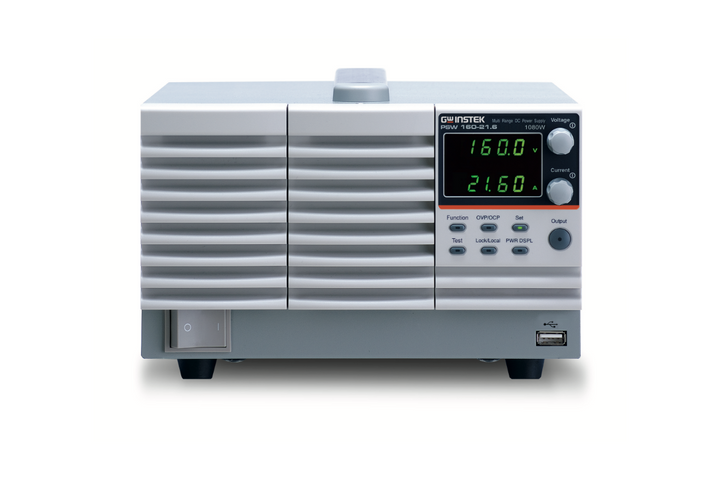

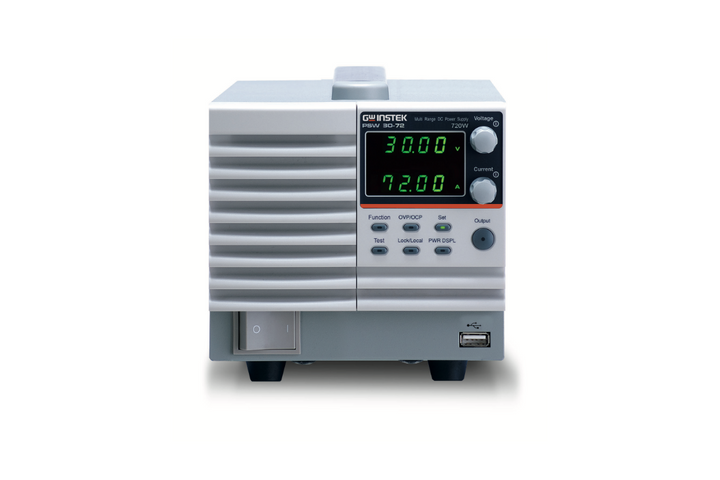

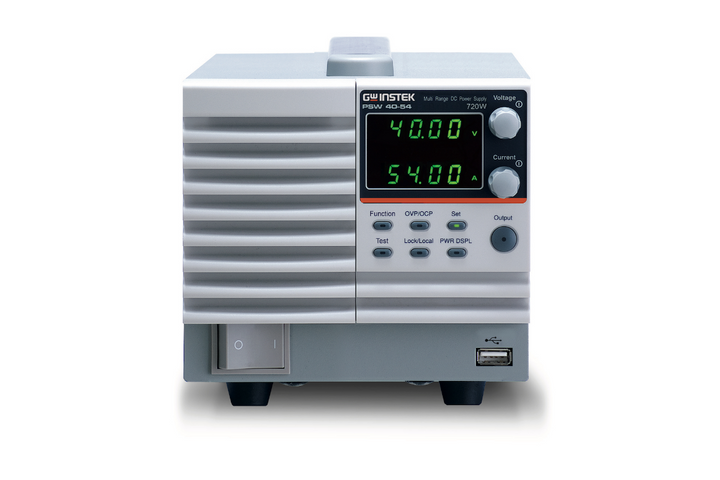

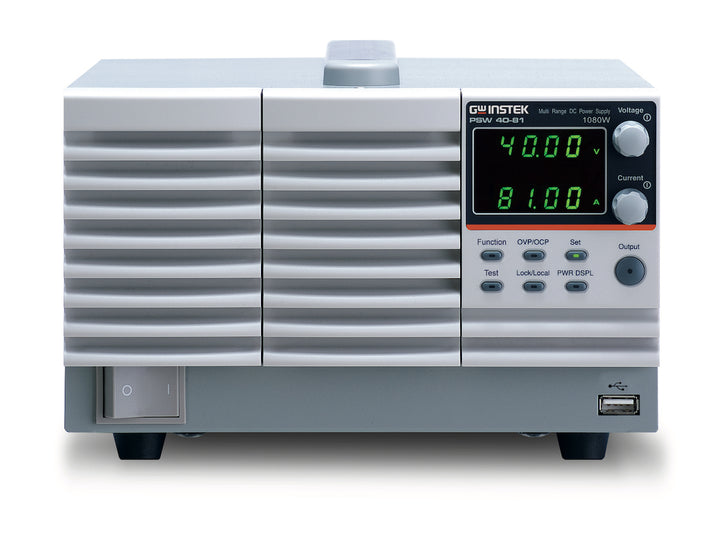

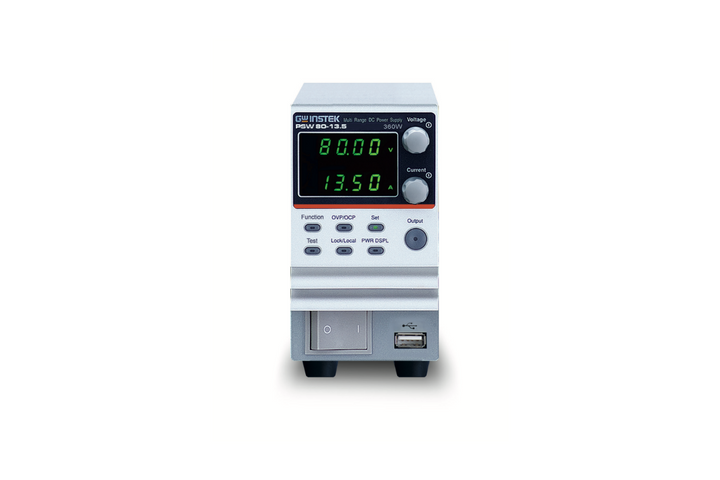

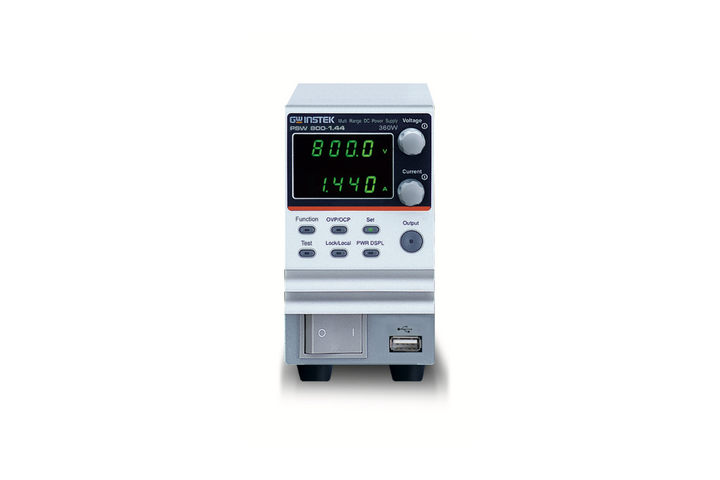

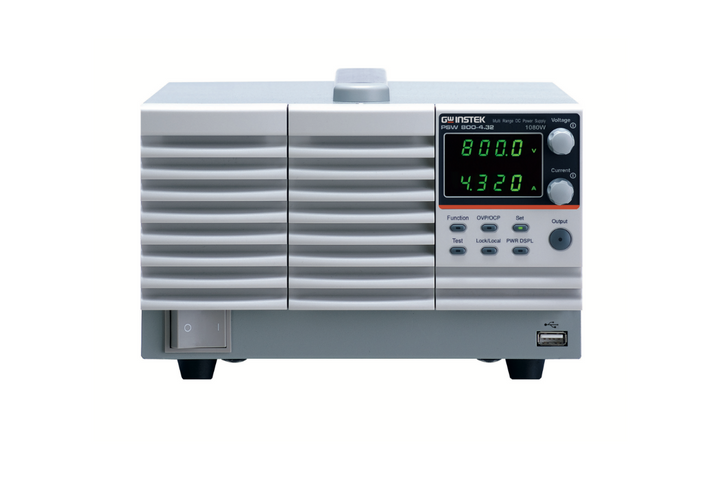

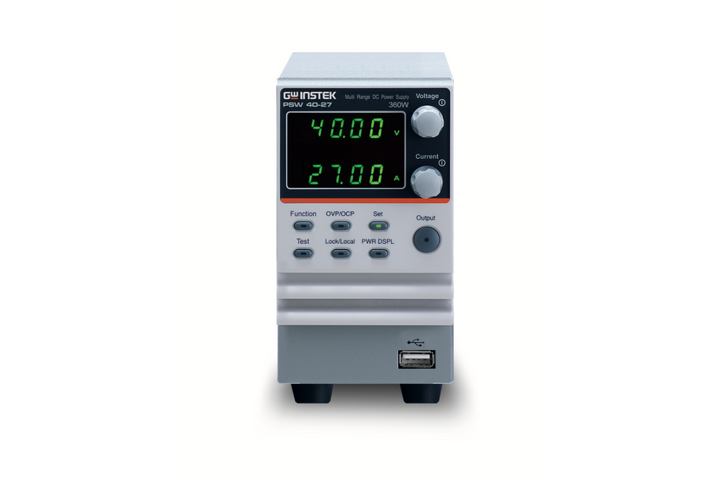

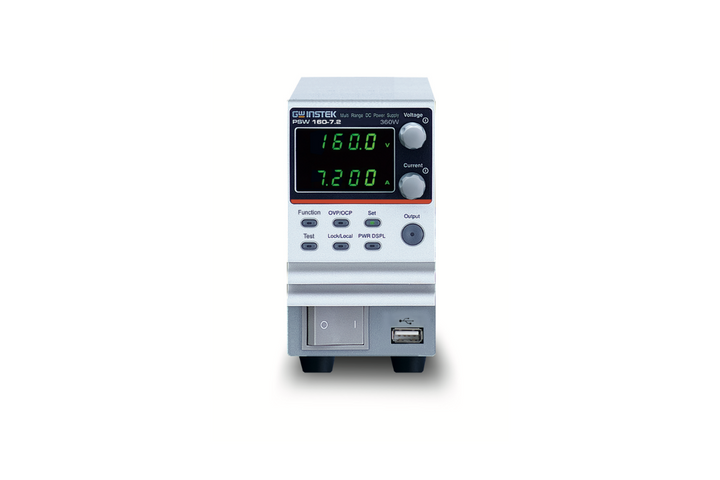

PSW-Series Programmable Switching D.C. Power Supply

RM6,866.00

Model: PSW 30-36

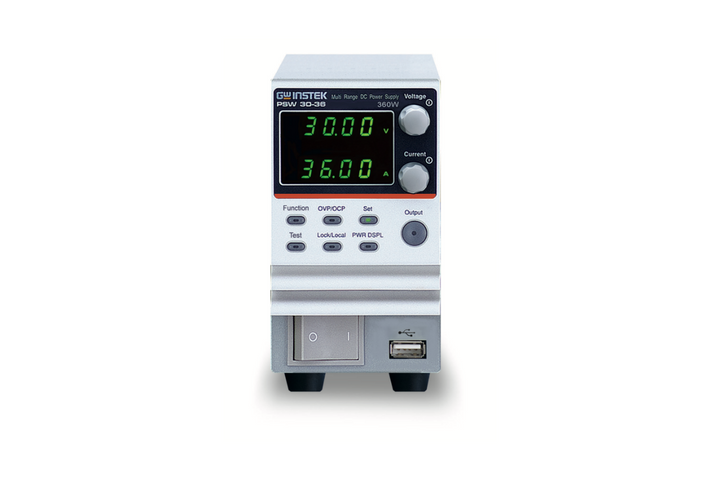

PSW 30-36
PSW 30-108
PSW 250-9
PSW 80-40.5
Ask a Question
PDF Icon

View
Datasheet

Key Specifications

  • Voltage Rating: 30 V / 40 V / 80 V /160 V / 250 V / 800 V, Output Power Rating: 360 W to 1080 W
  • Multi-range Voltage & Current Combinations in One Power Supply
  • CV/CC Priority; Particularly Suitable for the Battery and LED Industry
  • Adjustable Slew Rate
  • Series Operation (2 units in Series) for (30 V / 40 V / 80 V /160 V )
  • Parallel Operation (to 3 units Parallel) for (30 V / 40 V / 80 V /160 V / 250 V / 800 V)
  • High Efficiency and High Power Density
  • 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360 W, 720 W, 1080 W
  • Standard Interface: LAN,USB,Analog Control Interface
  • Optional Interface: GPIB-USB Adaptor, RS232-USB Cable
  • LabView Driver

Description

The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30 V, 40 V, 80 V, 160 V, 250 V, and 800 V rated voltages and 360 W, 720 W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.
