GPE-3060/6030 Triple-Channel DC Power Supply

RM3,479.00

Model: GPE-3060

GPE-3060
PDF Icon

View
Datasheet

Key Specifications

  • 1/2/3 independent isolated output channels

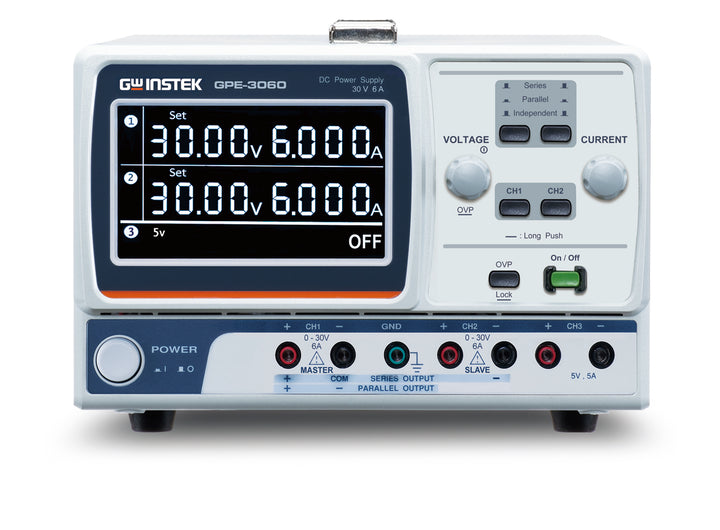

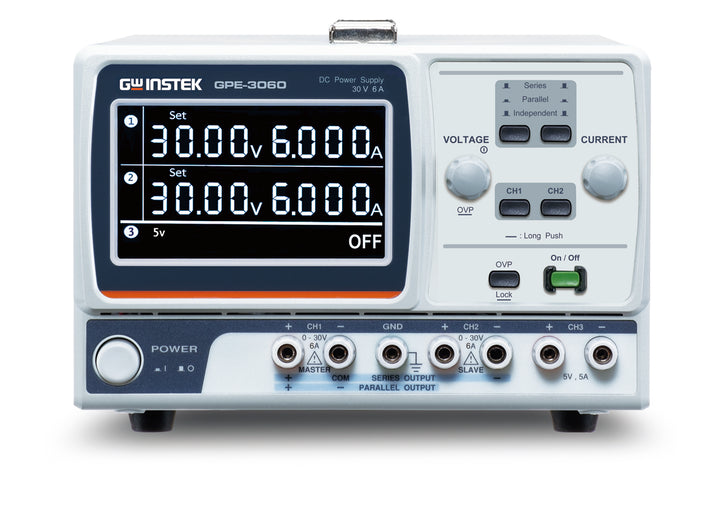

  • GPE-3060 provides CH1/CH2: 0 ~ 30V / 0 ~ 6A output; CH3 supports 5.0V at 5A

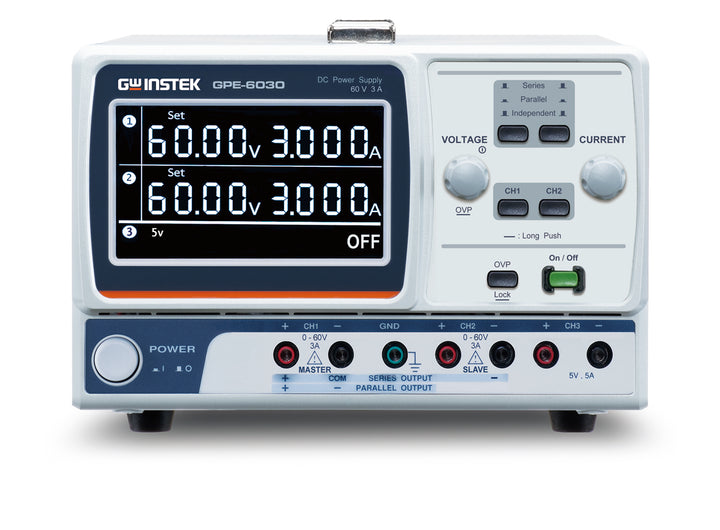

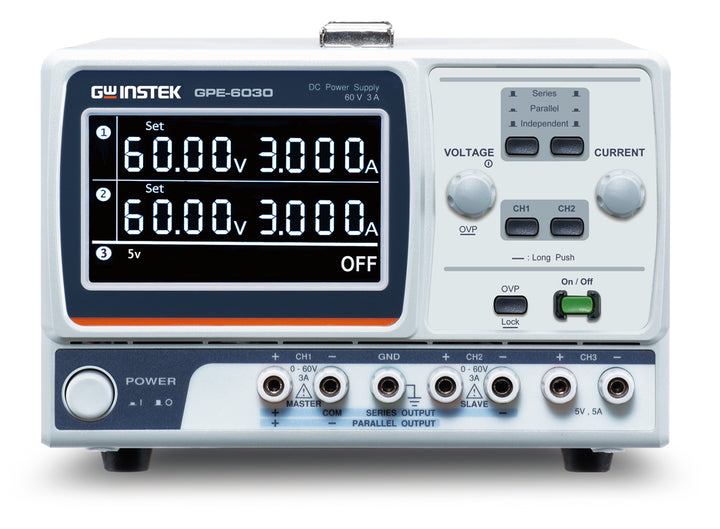

  • GPE-6030 supports CH1/CH2: 0 ~ 60V / 0 ~ 3A output; CH3 supports 5.0V at 5A
  • Series/parallel tracking function
  • High program resolution of 10mV/1mA and measurement resolution of 30mV/10mA
  • Output On/Off function
  • Simple analog control interface
  • Multiple protection apparatuses such as overvoltage and overload protection functions

Description

The GPE-3060/6030 launched by GW Instek are high-resolution linear DC power supplies. Their primary aim is to replace the existing GPC-3060D/ 6030D models. The GPE-3060/6030 deliver 385 watts of output power and feature three independent isolated output channels. The GPE-3060 offers CH1/CH2 outputs of 0 to 30V and 0 to 6A, while the GPE-6030 supports CH1/CH2 outputs of 0 to 60V and 0 to 3A. Both models feature CH3 outputs of 5.0V at 5A.
