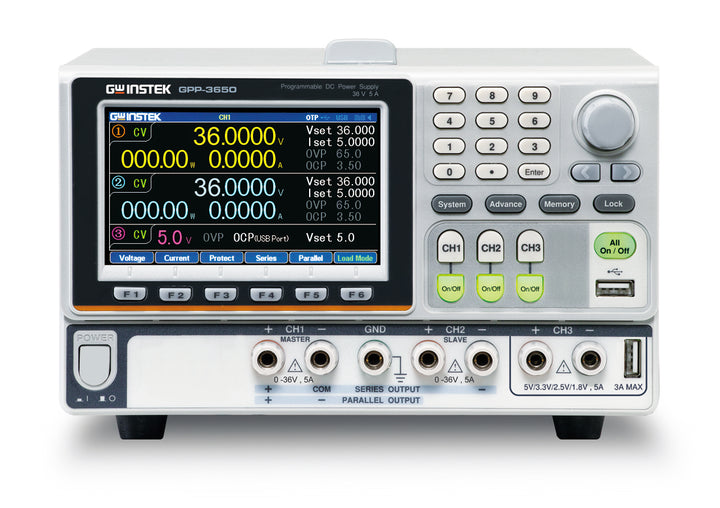

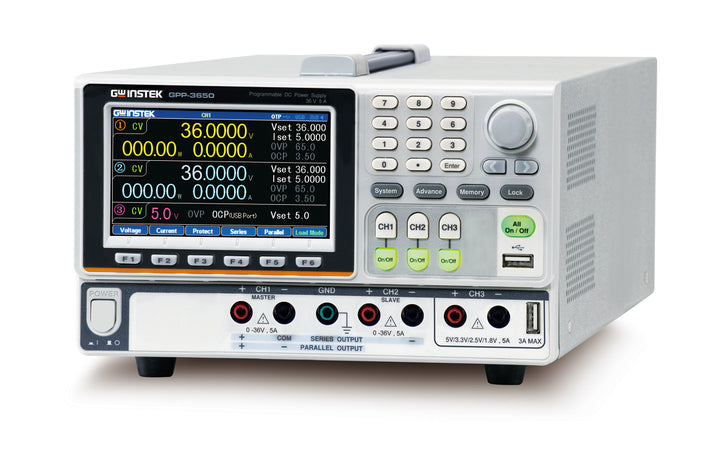

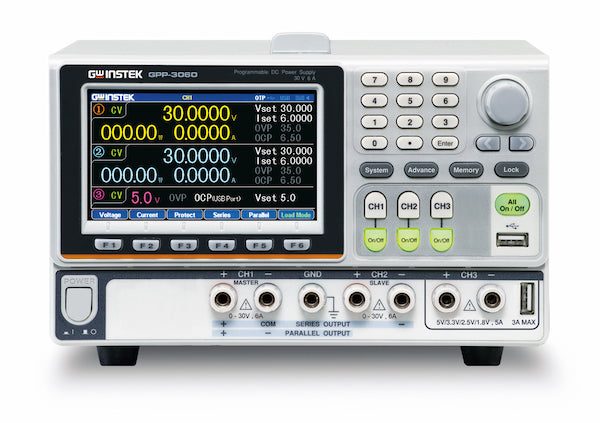

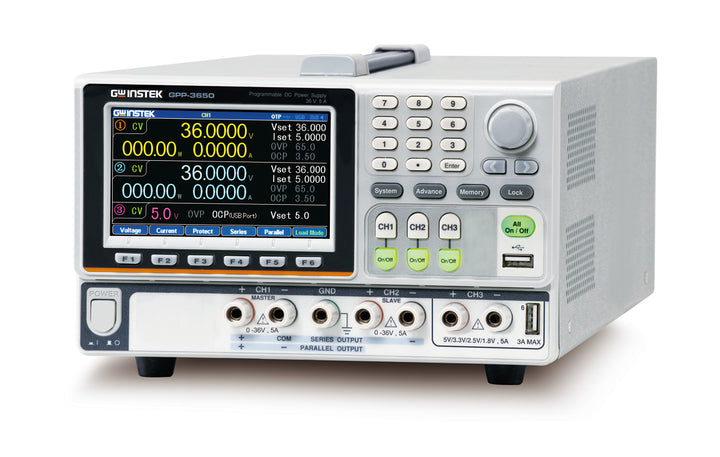

GPP-3060/6030/3650 Triple-Channel Programmable DC Power Supply

RM5,533.00

Model: GPP-3060

GPP-3060
Ask a Question
PDF Icon

View
Datasheet

Key Specifications

  • 4.3”TFT LCD Display
  • Setting resolution: 1 mV / 0.1 mA; read back resolution: 0.1 mV / 0.1 mA
  • Low ripple noise: ≦1 mVrms/ ≦2 mArms
  • Transient response time: ≦100 µS
  • Load function (CC, CV, CR mode)
  • Tracking series and parallel function without additional external wiring
  • Utilizing hardware to realize over voltage protection / over current protection / over temperature protection
  • Delay function / output monitoring function / output recorder function
  • Supports setting value, measurement value and output waveform display
  • Sequential output function and built-in 8 template waveforms
  • The output recorder function records the output voltage & current parameters with a minimum recording interval of 1 second
  • Provides 10 sets of memory for each sequence/delay/recorder/panel setting condition
  • Supports a USB (Type A) output terminal
  • Intelligent temperature control fan effectively reduces noise
  • Standard: RS-232, USB, LAN, Ext I/O ; Optional(manufacturer installed only): GPIB

Description

GPP-3060/6030/3650 triple-channel programmable DC power supplies are extension models of the GPP-X323 series. The maximum output power of these three models is 385W. GPP-3060 supports CH1/CH2: 0 ~ 30V / 0 ~ 6A output; GPP-6030 supports CH1/CH2: 0 ~ 60V / 0 ~ 3A output; GPP-3650 supports CH1/CH2: 0 ~ 36V / 0 ~5A output; CH3 of three models supports 1.8V, 2.5V, 3.3V, 5.0V/5A.
