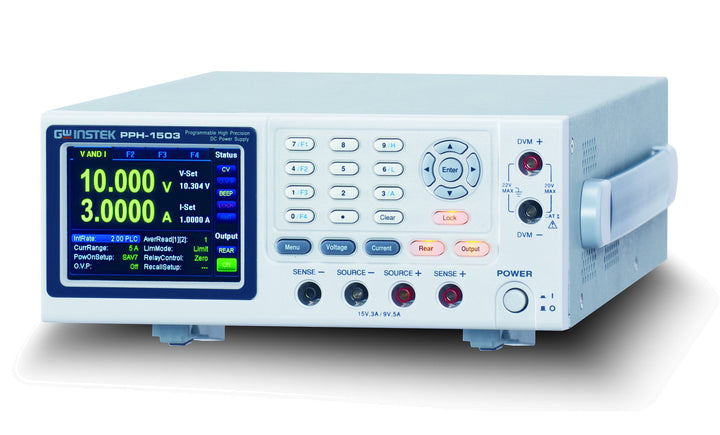

PPH-1503 Programmable High Precision D.C. Power Supply

RM8,576.00

Model: PPH-1503

PPH-1503
Ask a Question
PDF Icon

View
Datasheet

Key Specifications

  • Dual Range Output (0~15V/0~3A) or (0~9V/0~5A)
  • 3.5 Inch TFT LCD Display
  • Constant Voltage and Constant Current Operation
  • Built-in DVM Measurement Function
  • High Measurement Resolution (1mV/0.1mA for 5A Range);(1mV/0.1uA for 5mA Range)
  • External Relay Control Output On/Off
  • Sink Current Capability (Maximum:2A)
  • Digital Panel Control

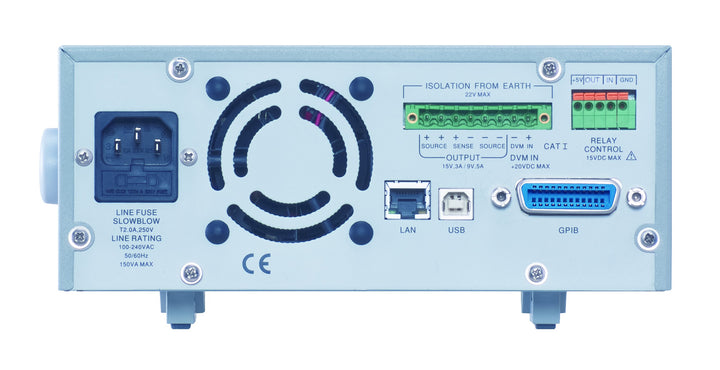

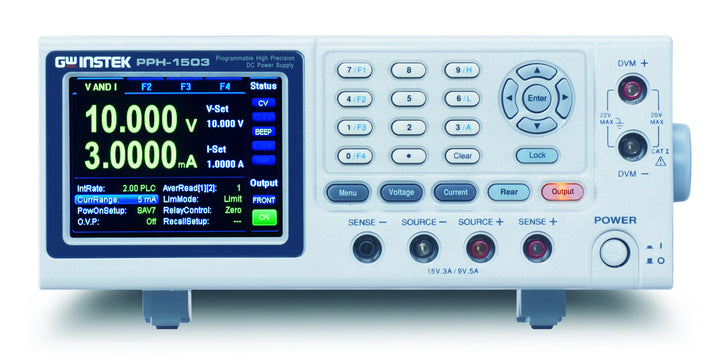

  • Selectable Output and Input (DVM) Ports From Front or Rear Panel
  • Key Lock Function
  • 5 Sets of Preset Memory Including Power Output ON/OFF States
  • High Speed Transient Recovery Time(<40us within 100mV ; <80us within 20mV)
  • OVP/OCP/OTP Protection to Prevent DUT Damage
  • Standard Multiple Interfaces: USB / LAN /GPIB
  • Labview Driver and PC Remote Control Software

Description

PPH-1503 is a high-speed and high-precision DC Power Supply with dual range of 15V/3A or 9V/5A. PPH-1503 is exclusively designed to meet low power consumption requirements and users’ great demands of accuracy, speed and resolution of both voltage and current. Circuits are designed with swift response capability to provide a stable voltage output while experiencing load changes. For example, when switching cellular phone from standby to talk mode, the current consumption will be dramatically changed within milliseconds. When load current exceeded current limit, two operational modes: Limit and Trip can be selected. Under Limit mode, PPH-1503 will automatically switch to constant current (CC) mode. Under Trip mode, voltage output will automatically turn off.
