LCR-15A Test Fixture For SMD/Chip Components

RM5,750.00

Model: LCR-15A

LCR-15A
Ask a Question

Key Specifications

  • SMD/chip component test fixture
  • Compatible with LCR-8200 series
  • High/low electrode pins (locking screw + lever)
  • DC to 30MHz frequency range
  • ±45V max voltage rating
  • Includes L-shape bracket for stability
  • Reduces BNC connector strain

Description

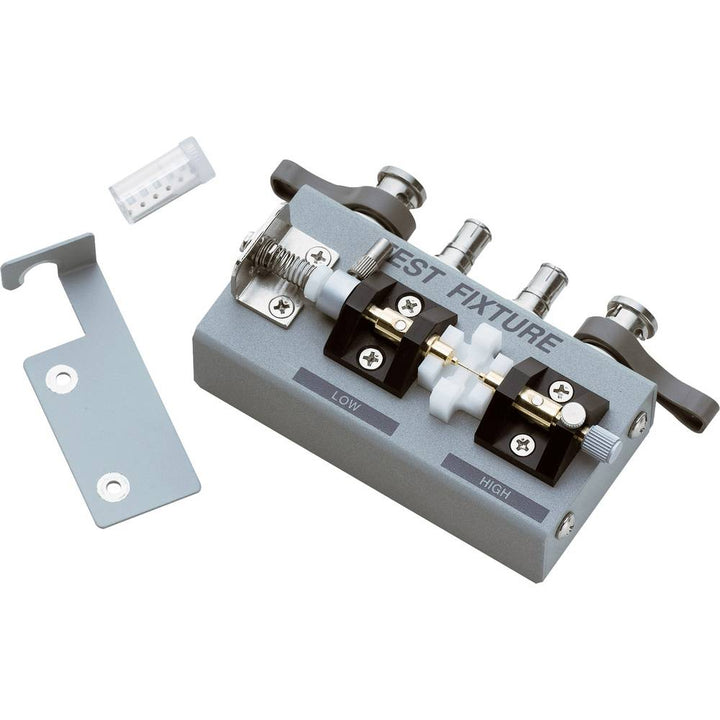

The Instek LCR-15A Test Fixture is designed for high-frequency testing of SMD/chip components up to 30MHz, compatible with LCR-8200 series meters. It features a high/low electrode pin design (secured via locking screw and lever) and includes an L-shape bracket to enhance stability and prevent BNC connector strain. With a ±45V max voltage rating and DC–30MHz frequency range, it ensures precise measurements for surface-mount devices.
