GPT-9900 Electrical Safety Tester

RM12,253.00

Model: GPT-9901A

GPT-9901A
GPT-9903A
Ask a Question
PDF Icon

View
Datasheet

Key Specifications

  • 500VA AC Test Capacity
  • Short Current > 200mA
  • 240x64 Ice Blue Dot matrix LCD
  • Sweep Function for DUT characteristic analysis
  • Insulation resistance measurement up to 50GΩ(GPT-9903A/9904)
  • Manual/Auto Mode
  • Function Key for quick selection
  • High intensity flash for caution & Status indication
  • Safety INTERLOCK function
  • Zero Crossing Turn-on Operation
  • Controllable Ramp-up Time
  • RMS Current Measurement
  • High resolution: 1uA for measuring current, 2V for setting voltage
  • PWM amplifier to enhance the power efficiency and reliable testing
  • Max. 100 memory block for test condition (step) setting. And each step can be named individually.
  • Remote terminal on the front panel for “start” and “stop” control

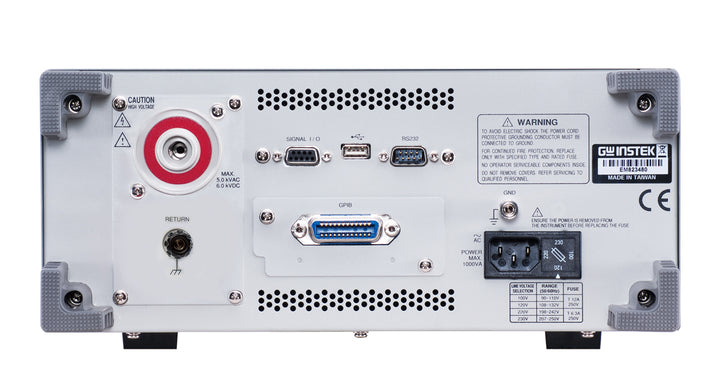

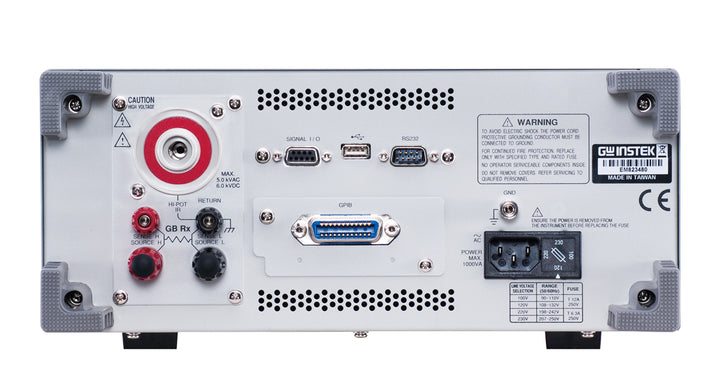

  • Rear panel output available
  • Interface : RS-232C, USB device, Signal I/O and GPIB (optional)

Description

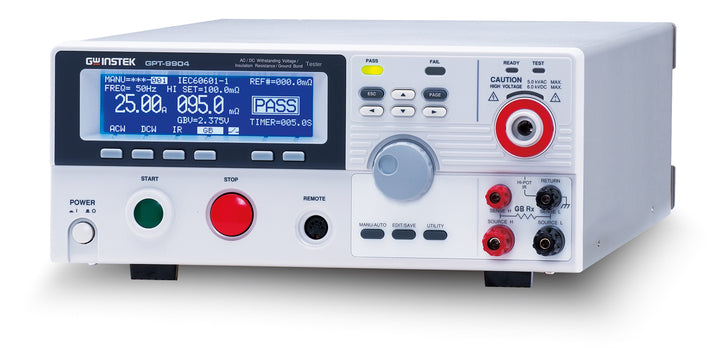

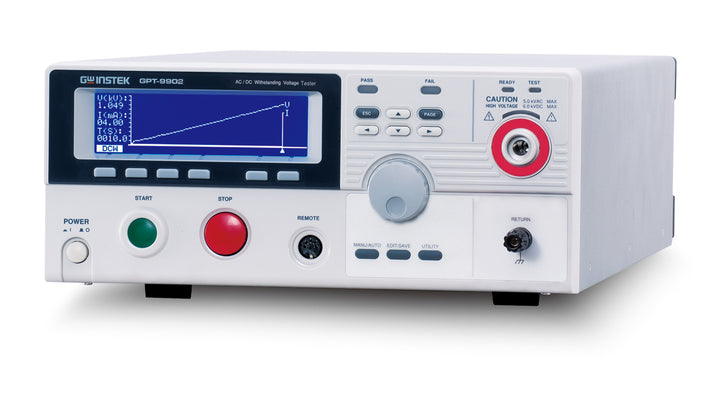

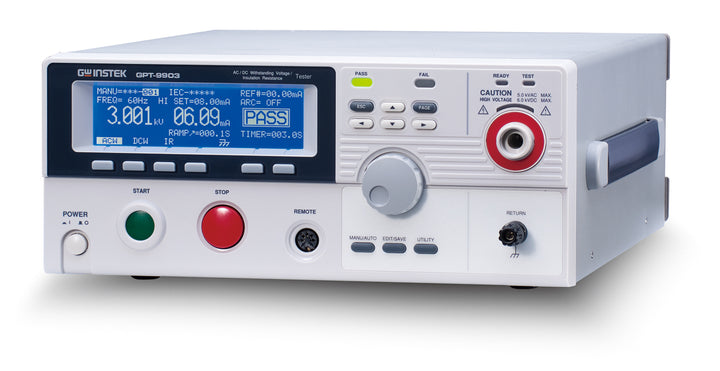

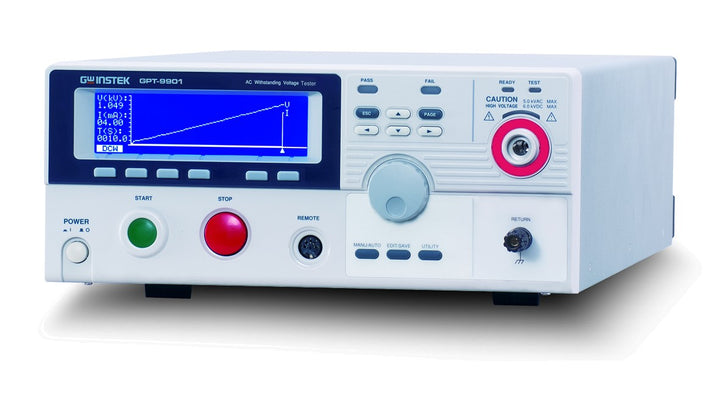

The GPT-9900 series is built upon a platform of AC 500VA maximum power output. The GPT-9904 is a 4-in-1 model capable of performing AC withstanding, DC withstanding, insulation resistance and ground bond tests, whereas the GPT-9903A is a 3-in-1 model capable of performing AC withstanding, DC withstanding and insulation resistance tests. The GPT-9902A is capable of performing both AC and DC withstanding tests whereas The GPT-9901A is able to only perform AC withstanding tests.The GPT-9900 series safety tester follows every good feature and advantage of the GPT-9800 series. The high-efficiency PWM amplifier is the core of GPT-9900 platform design to impede the influence from the voltage fluctuation of input AC source.
