Photos shown are for illustration purposes only

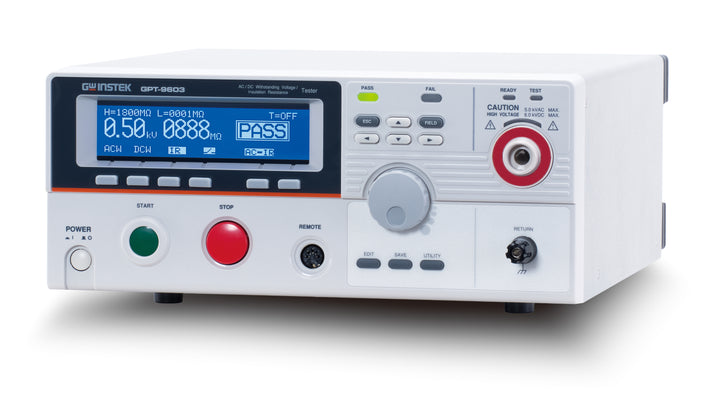

GPT-9600 Economical Safety Tester

RM4,044.00

Model: GPT-9601

GPT-9601
GPT-9612
Ask a Question
PDF Icon

View
Datasheet

Key Specifications

  • 100VA AC Test Capacity
  • 240x48 Ice Blue Dot matrix LCD
  • Auto W-I or I-W Mode
  • ARC Detection
  • RMS Current Measurement
  • Zero Crossing Turn-on Operation
  • Safety INTERLOCK function
  • PWM amplifier to enhance the power efficiency and reliable testing
  • Automatically Switching Input Source for Universal Input Voltage
  • Interface : Remote terminal and Signal I/O

Description

The GPT-9600 Series is built upon a platform of 100VA AC maximum power output. The GPT-9603 is a 3-in-1 model capable of performing AC withstanding, DC withstanding and insulation resistance tests. The GPT-9612 is capable of performing AC withstanding and insulation resistance tests. The GPT-9602 is capable of performing AC and DC withstanding tests, and GPT-9601 is able to perform AC withstanding test. The GPT-9600 Series is equipped with the high-efficiency PWM amplifier, which is the core of the platform design to impede the influence from the input AC voltage fluctuation and ensure a stable voltage output.
