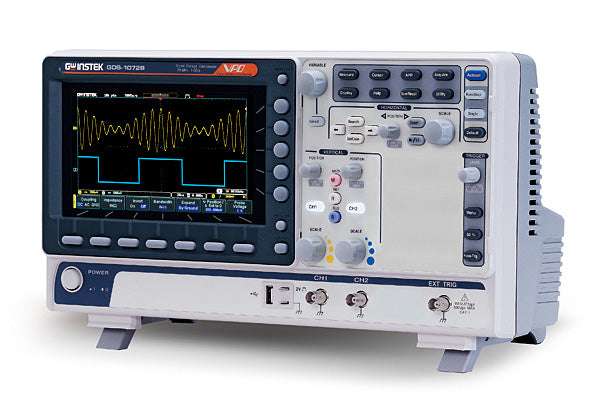

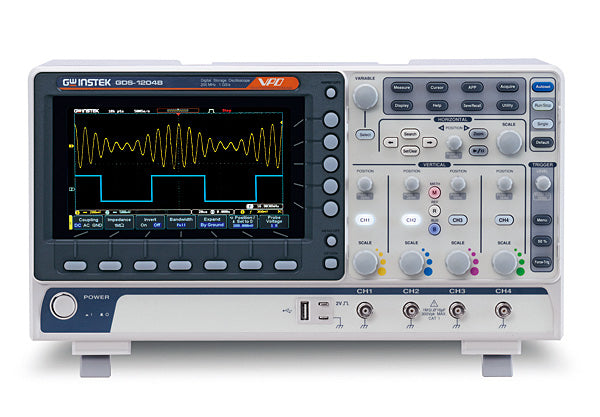

GDS-1000B Series Digital Storage Oscilloscopes

RM2,290.00

Model: GDS-1102B

GDS-1102B
GDS-1104B

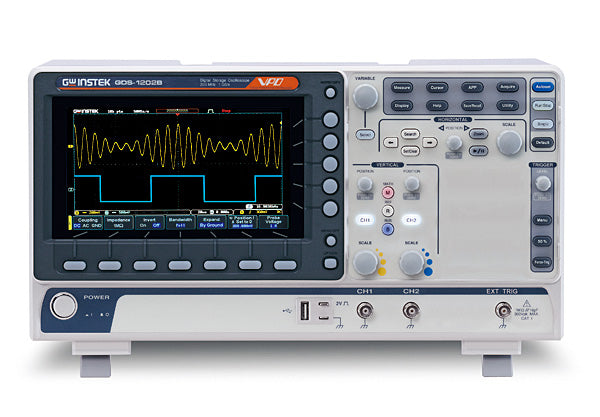

GDS-1202B
PDF Icon

View
Datasheet

Key Specifications

  • 200/100/70MHz bandwidth selections, 2ch input
  • 100/70/50MHz bandwidth selections, 4ch input
  • 1GSa/s maximum sampling rate
  • 10M maximum memory depth for each channel
  • 7” 800 x 480 WVGA LCD display
  • 256 color gradient display function to strengthen waveform performance
  • I2C/SPI/UART/CAN/LIN serial bus trigger and decoding functions
  • 1Mpts FFT frequency domain signal display
  • Zero Key function for horizontal time, vertical voltage and triggering
  • Compact and innovative exterior design

Description

The GDS-1000B Series features four bandwidth selections - 200MHz, 100 MHz, 70 MHz, 50MHz and equips with analog signal input terminals by four or two channels. The maximum sampling rate for each single channel is 1GSa/s, and the memory depth is 10Mpts per channel independently. The GDS-1000B Series has a waveform update rate of 50,000wfms/s, which helps users to precisely observe the detailed waveform variation. Additionally, 7” WVGA color LCD display and the 256 color gradient display function together allow waveforms to be observed with the senses of transparency and gradation.
