Photos shown are for illustration purposes only

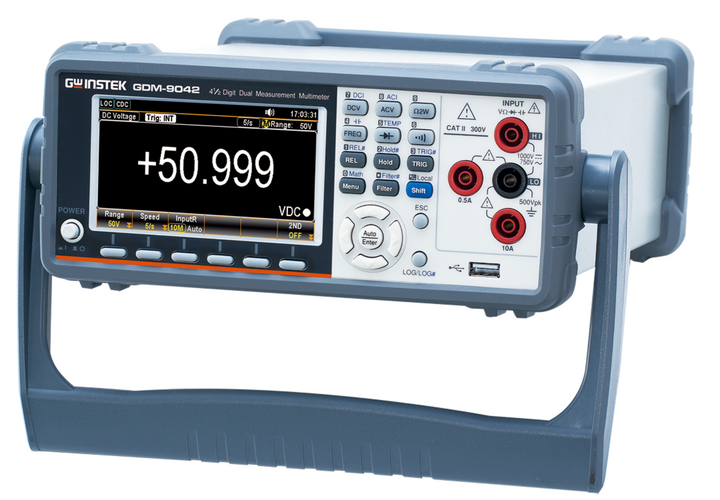

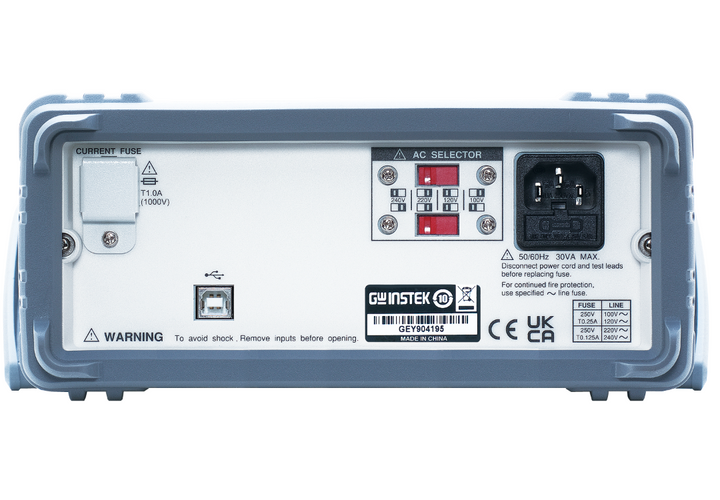

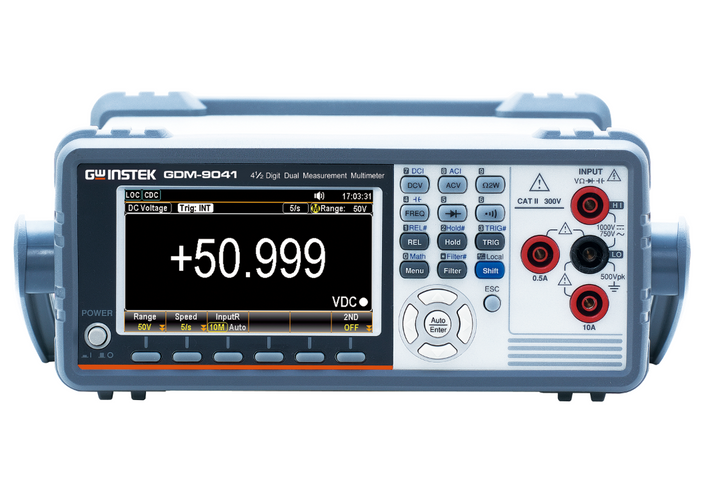

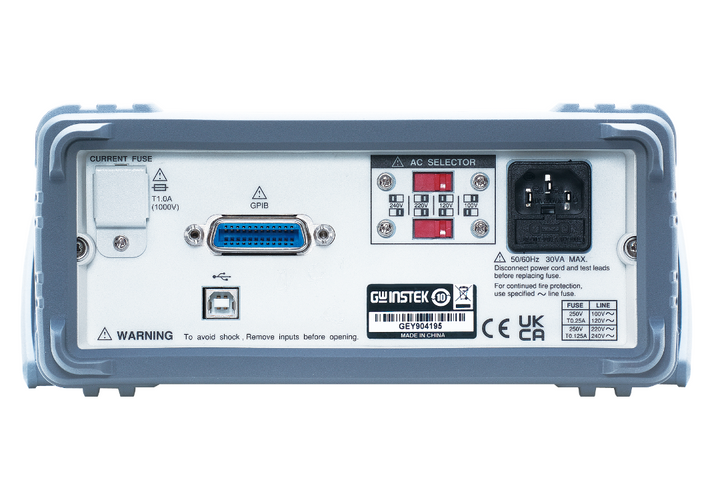

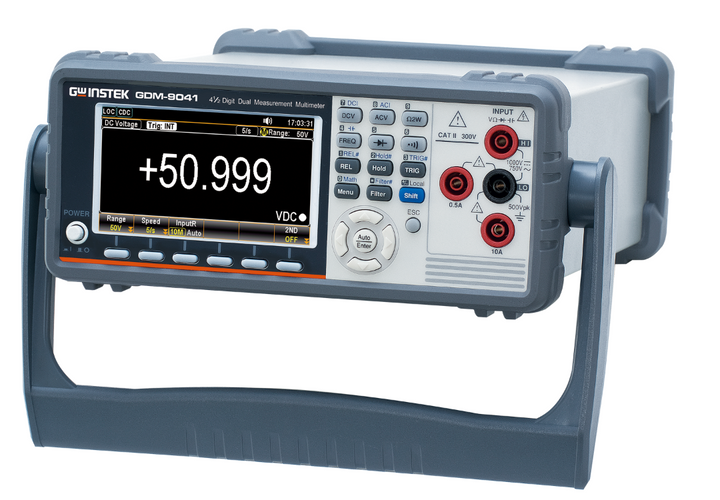

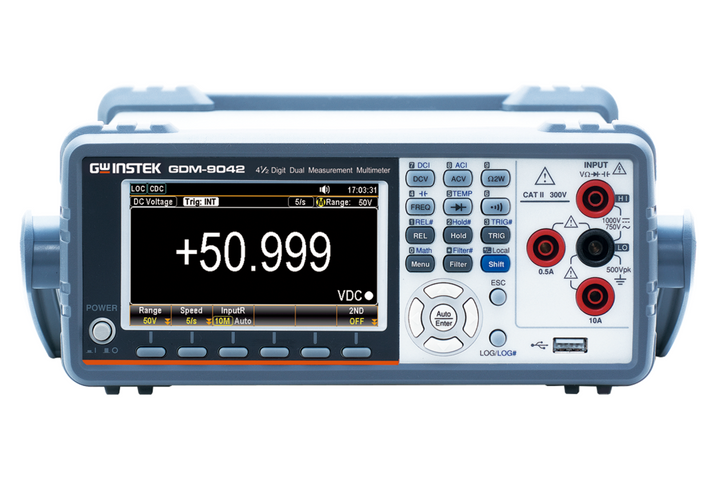

GDM-9042 & GDM-9041 Dual Measurement Multimeter

RM2,117.00

Model: GDM-9041

GDM-9041
GDM-9042
Ask a Question
PDF Icon

View
Datasheet

Key Specifications

  • 50,000 Counts
  • 4.3' TFT Graphic LCD
  • DCV Basic Accuracy: 0.02 %
  • A. I. Measurement offers automatic identification and measurement for Voltage, Resistance, Diode, or Continuity tests without the need for manual selection
  • 11 Measurement Functions: DCV, ACV, DCI, ACI, 2-wire Resistance, Frequency, Period, Diode, Continuity, Capacitance and Temperature
  • True RMS (AC, AC+DC) measurements
  • Dual Measurement Function to Providing Two Selected Measurement Simultaneously
  • Max./Min., REL, MX+B, 1/X, Ref%, Compare, Hold, dB, dBm
  • Standard Interfaces: USB Device (support USBCDC & USBTMC)
  • Temperature measurement function (GDM-9042 only)
  • USB storage for Data collection (GDM-9042 only)

Description

GW Instek rolls out the new Dual Measurement Multimeter -- the GDM-904x series, which has two models -GDM-9041 and GDM-9042, to replace the existing GDM-834x series. Its exceptional features include 50,000 counts, LCD display, 0.02% basic DC voltage accuracy, Automatic Identification (A.I.) measurement and a USB protocol connector to provide users with measurement precision, lucid data observation, smooth measurement experience and the convenience to connect with the personal computer.
