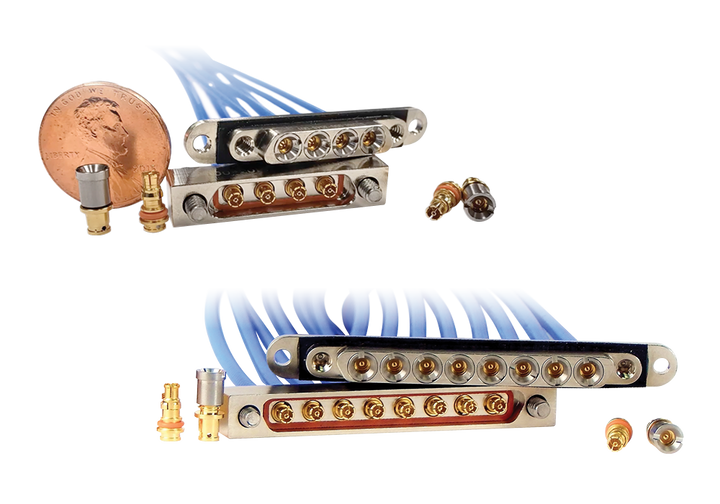

Mini-MultiMate® Board-to-Device Harness Solutions

Cable Type: Mini-MultiMate® Using 047 Cable

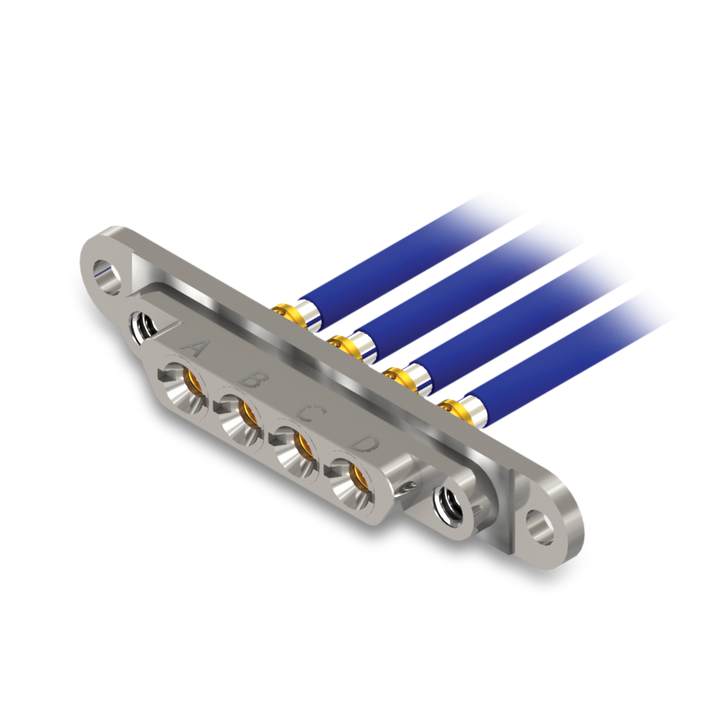

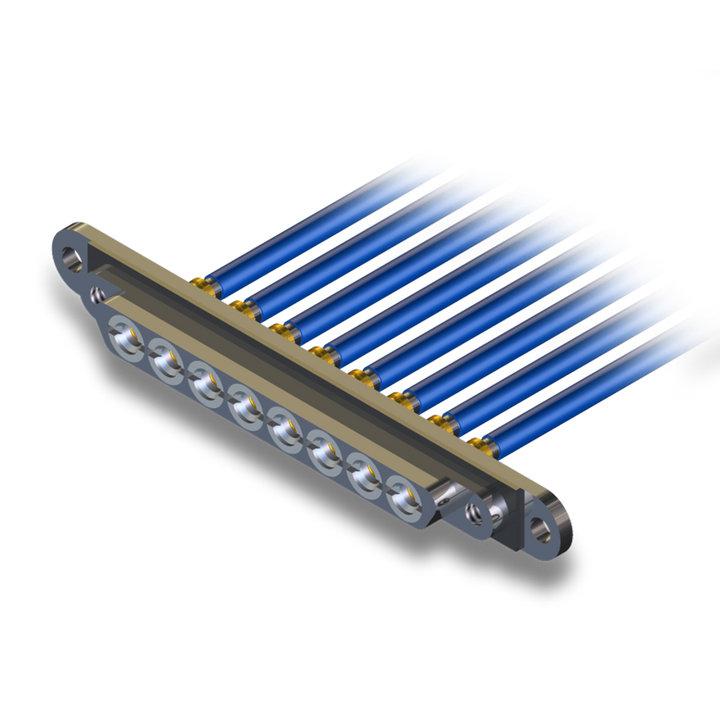

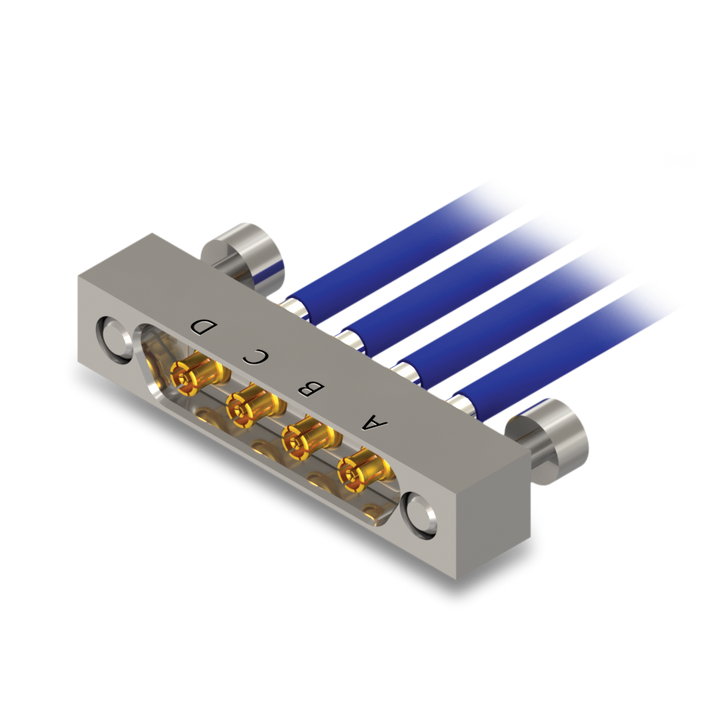

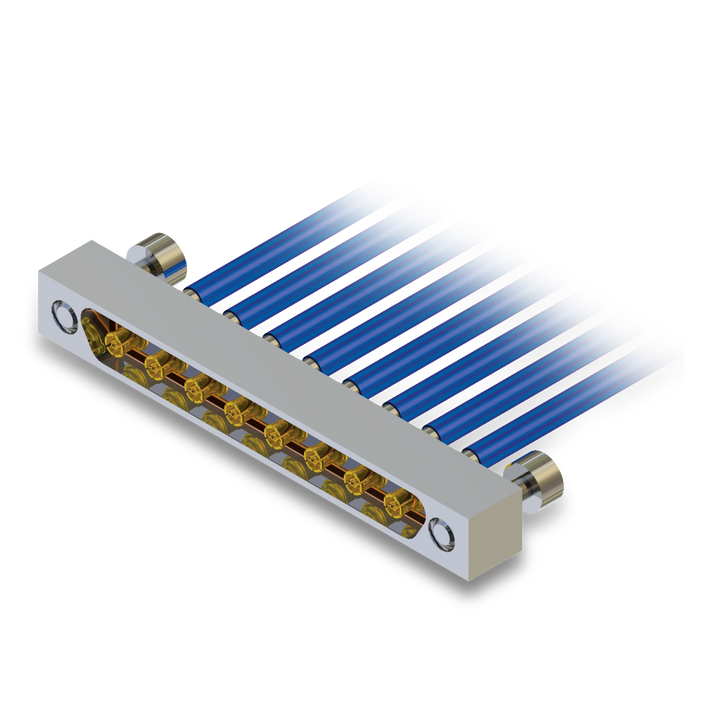

Mini-MultiMate® Using 047 Cable
Mini-MultiMate® Using 086 Cable

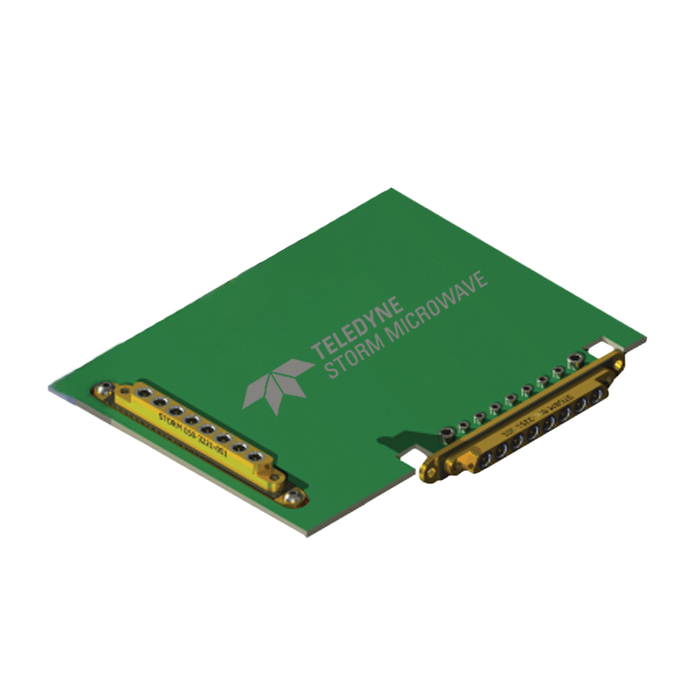

PCB Mount Receptacle
PDF Icon

View
Datasheet

Key Specifications

Please refer to datasheet for detailed specifications.

Description

The Mini-MultiMate® is a compact, rugged, splash-resistant interconnect system that allows multiple high frequency connections (up to 50 GHz) with a single connector.

As an interconnect between a panel or PCB, the Mini-MultiMate’s compact size and utilization of Storm Flex® 047 & 086 cables makes it the perfect fit for high density layouts. Built to be durable, Storm Flex® 047 & 086 cables have the flexibility to handle tight bends and offer superior and consistent electrical performance with flexure.

The Mini-MultiMate® also accepts 047 & 086 semi-rigid cables. Ease-of-use features include port identification on the connector block and the ability to replace individual channel assemblies.
